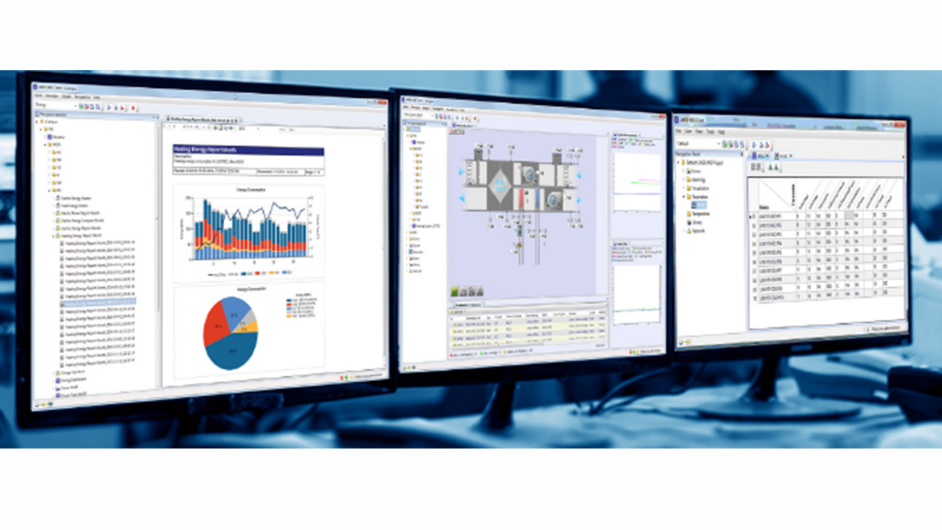

L-WEB Building Management System

L-VIS Touch Panels

L-VIS Touch Panels are ideally suited for visualization and operation of various applications in building automation. L-VIS Touch Panels visualize building automation systems, can be used as room units, or make a good choice in conference rooms and reception areas. L-VIS impresses with its timeless design, harmonic integration into modern and historical architecture, with an extremely user-friendly concept. The shallow installation depth and low thermal power loss allow mounting in almost any location.

For the operation and monitoring of information in LonMark Systems, BACnet or Modbus networks, the following types of L‑VIS Touch Panels are available:

• 7” L-VIS Touch Panel, frameless glass front and capacitive touch
• 12.1” L-VIS Touch Panel, frameless glass front and capacitive touch
• 15” L-VIS Touch Panel, frameless glass front and capacitive touch

LPAD-7 Operator Touch Panels

LPAD-7 Operator Touch Panels perfectly act as room operator panels, network thermostats, or generic programmable controllers with integrated capacitive touch screen and a variety of built-in sensors. LPAD-7 perfectly fits the requirements to operate in commercial or residential rooms of any type.

LPAD delivers a modern and slim design installed on a wall. The LPAD-7 senses temperature, humidity, brightness, and presence. Optional mounting sockets add a variety of additional connectivity capabilities and a number of physical inputs and outputs when required.

The IR receiver detects commands from an IR remote control. The proximity sensor turns on the backlight of the display and the detection distance can be set (20-200 cm). LPAD-41Gx models provide SIP client support to integrate a camera feed and VolP.

IP connectivity is via Ethernet ports on the device supporting PoE, bridged or separated network configuration in addition to WLAN wireless. LPAD-7 can communicate with Bluetooth or Bluetooth mesh devices in a space.

LPAD-7 implements the most popular open protocols such as BACnet, Bluetooth, Modbus, OPC XML/DA, OPC UA, EnOcean, LonMark IP852 and FT.

The L-DALI product line offers DALI gateway functionality that leaves nothing to be desired, in combination with powerful lighting applications. This allows an incorporation of the DALI system in the superior building automation system and an integration of the lighting system in the remaining automation system for realizing a full-integrated room automation solution.

L-DALI Controllers are multi-functional devices featuring DALI light control and gateway functionality between the DALI protocol (Digital Addressable Lighting Interface) and LonMark Systems or BACnet Networks. In addition to the integration of DALI ballasts these controllers support configuration of DALI pushbutton couplers ( e.g. LDALI-BM2), a variety of multi-sensors (like the LDALI-MSx-BT-B), and the L-DALI relay modules (LDALI-RM5, LDALI-RM6, LDALI-RM8). The built-in web server allows for device configuration, DALI system configuration and maintenance. L-DALI Controllers feature alarming, scheduling, trending (AST™) and e-mail notification functionality.

The L-DALI controllers feature DALI-2 support. They can integrate EnOcean devices and, together with the LSMI-804 oder LDALI-SBM1 interface, they can build up an intelligent and efficient sun and anti-glare protection through active slat control and slat adjustment according to the sun position.

The LOY-BT product line features wireless connection via Bluetooth using L-PAD Touch Panels, LOYBT-TEMP1 Bluetooth Mesh Temperature Sensors and LOYBT-MSx-BT-B Bluetooth SIG Mesh qualified Multi-sensors with Bluetooth SIG qualified stack.

The L‑STAT is a room control device with a modern, minimalis-tic look that fits any interior design. It is directly connected to a LOYTEC controller with a Modbus interface.

Up to 16 L-STAT devices can be connected to one controller. L‑STAT is equipped with a segmented LCD display featuring an RGB backlight with adjustable color, offering an elegant way to make the L-STAT match the interior color concept of any building. Eight capacitive touch buttons are used to cycle through sensor values, display parameters, and adjust set points. Additionally, four external buttons can be connected.

Depending on the version, the L‑STAT’s internal sensors mea-sure temperature, humidity, dew point, ambient light, occupancy, and the CO2 level of the air. Additionally, the date and time as well as the current level of eco-friendliness in the form of leaves are also displayed on the LCD display.
A buzzer provides acoustic feedback for the touch buttons and can also be used to indicate alarms and error states.

To prevent unauthorized modifications, two access levels (end user, system integrator) are provided. Last but not least, the L-STAT comes with a built-in infrared receiver for comfortable remote control.

Smart. Versatile. Energy-Efficient. Building automation is evolving, and single-room control is at the heart of it. Offices, hotels, and schools demand flexibility, efficiency, and seamless integration—without costly rewiring. The LOYTEC LROC-800 Room Controller delivers a wireless, intelligent solution that adapts to any space, ensuring optimal comfort, lighting, and energy savings while integrating with BACnet/IP, Bluetooth Mesh, DALI, and more.

No new cabling. No hassle. Just smart automation that works.

The LROC-800 Room Controller extends LOYTEC’s L-ROC system with a rich blend of wired, wireless, and electrical interfaces. It is designed for advanced single-room automation applications and scales up to 3 rooms or room segments. Its core feature is a Bluetooth Mesh (SIG) interface for integrating Bluetooth Mesh sensors, luminaires, and other actuators.

The device targets the need for cabling reduction in both, new buildings and retrofit scenarios.

The LROC-800 Room Controller also seamlessly integrates with native BACnet/IP networks and LonMark Systems at the controller level. Together with the L‑STUDIO software, flexible room solutions can be created and adapted to changing requirements during the project with little effort. Integral parts of the L‑ROC system are a web-based room operation; via an LWEB‑802/803 dashboard and the automatic generation of graphics for the L‑VIS / L-PAD Touch Panel for local operation.
