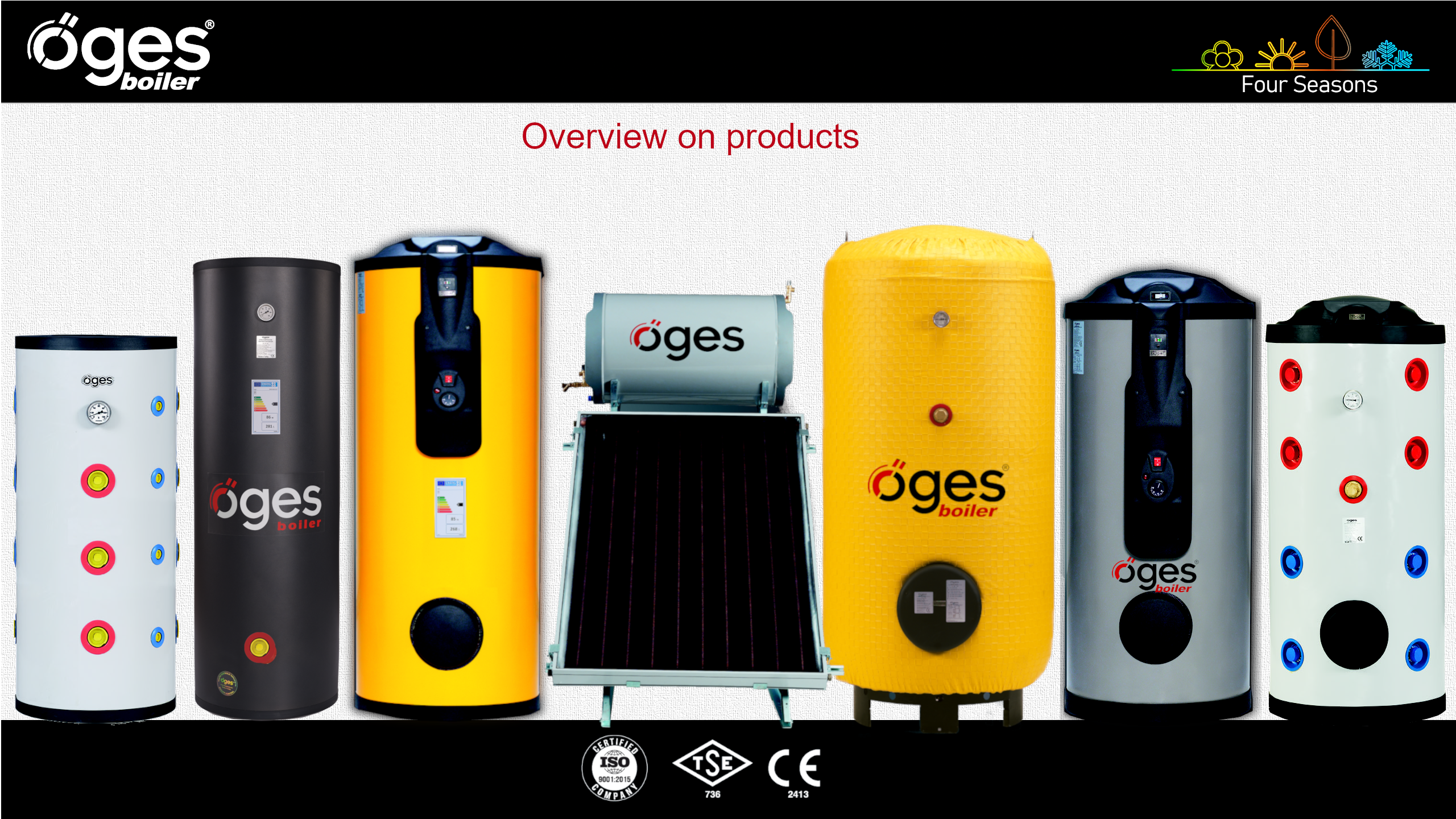

Our company is one of the leading companies in Turkey on producing Solar Hot Water Systems (SHWS). Especially Polyurethane Insulated and Enamelled Boilers (Single and Double Serpentine and optionally with Electrical Resistance Heater), Accumulation Tanks of from 100 upto 6000 LT, Buffer Tanks, Heatpump Boilers and Solar Pressurized Enamel jacketed/walled Tanks and so on.(Under the certification CE 2413 and ISO 9001-2015).

Also we produce SHW Systems With Vacuum Tubes and Flat Panel Collector, Manifold and Panel Collector.

ADVANTAGES

The inner surfaces of the boiler tanks are covered with a titanium-based enamel (Glassy Surface).By applying this process; the resistance against corrosion is increased in accordance with the usage purposes of boilers. As the surface roughness of the tank is reduced by this process, the accumulation of material and bacteria on the surface during its use is reduced to a large extent and system hygiene is ensured. Fast boilers prevent the formation of quenching zones thanks to their special serpentine designs. Titanium enamel coating prevents bacterial growth and corrosion.

WORKING PRINCIPLE

They are pressure vessels that heat and store water in apartments and all kinds of facilities with a central hot water system thanks to the specially designed serpentine for the production and storage of clean hot water. The double serpentine boiler is a kind of boiler that performs the heating process by means of the double serpentine in the boiler (for example, Those working with 2 heat sources such as solar energy, natural gas, solid fuel heater) in order to make the instant heating more powerful.

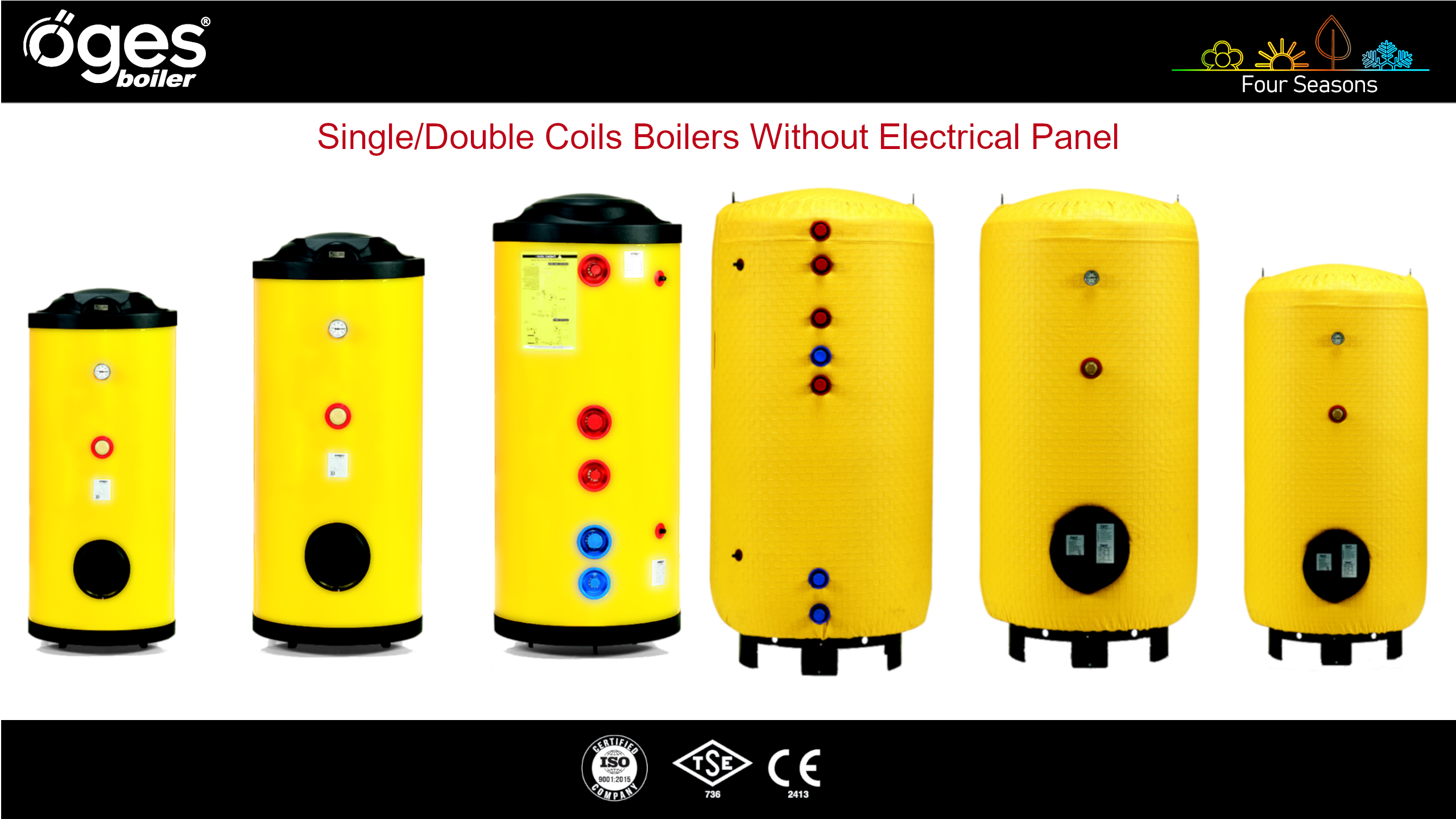

Single Serpentine Boilers

Capacity: 100 L - 6000 L

Insulation: 100 L - 600 L Sheet covered on polyurethane

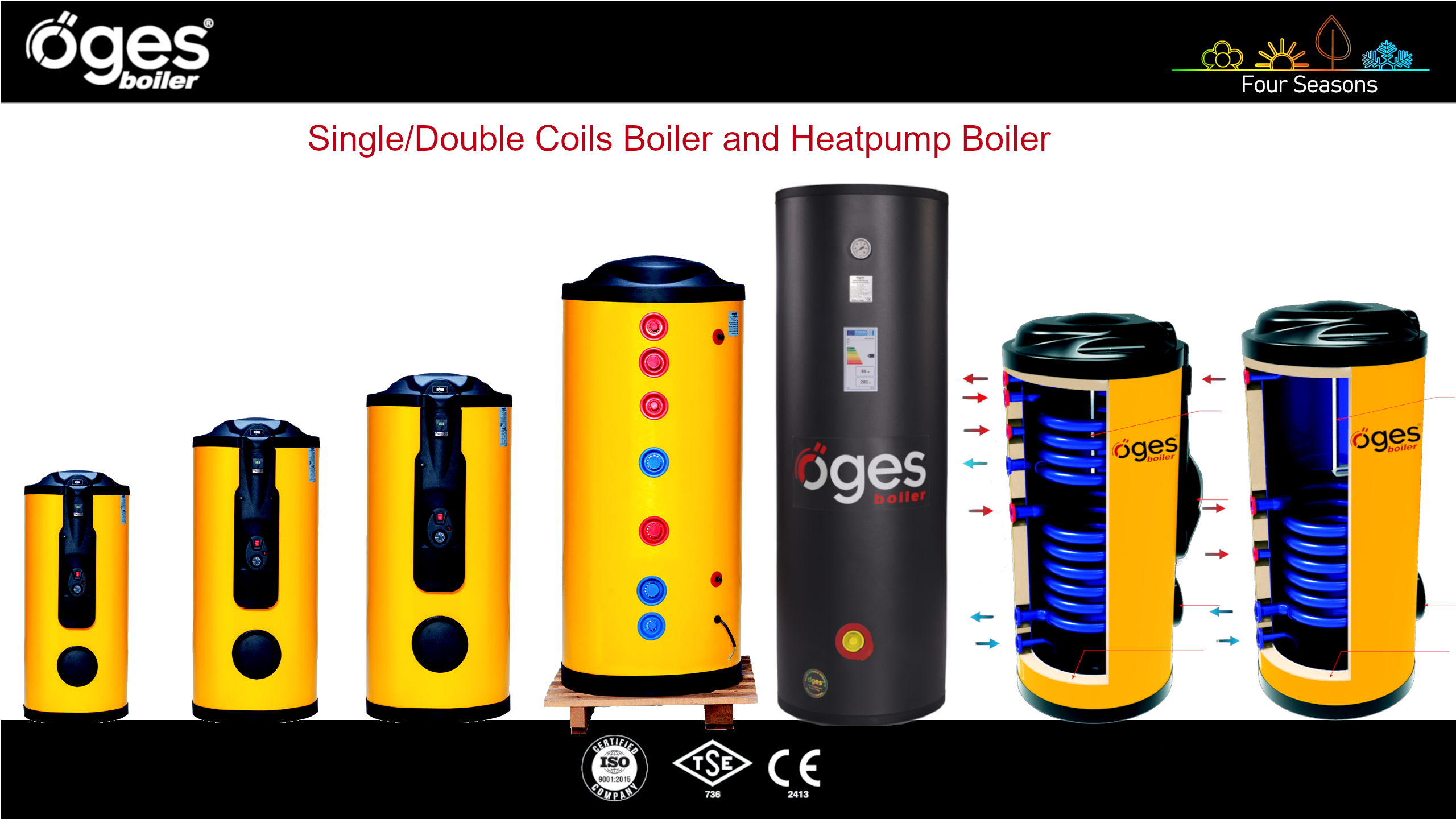

Double Serpentine Boilers

Capacity: 160 L - 6000 L

Insulation: 160 L - 600 L Sheet covered on polyurethane

Single and Double Serpentine Boilers

Inner Surface: 100% Hygienic. According to DIN 4753

Titanium Based Enamel (Glass Surface) Coating.

800 L - 6000 L Soft Sponge On Winlex

Boiler and Serpentine Operation Pressure: 10 Bar (Max.)

Boiler and Serpentine Test Pressure: 18 Bar (Max.)

ADVANTAGES

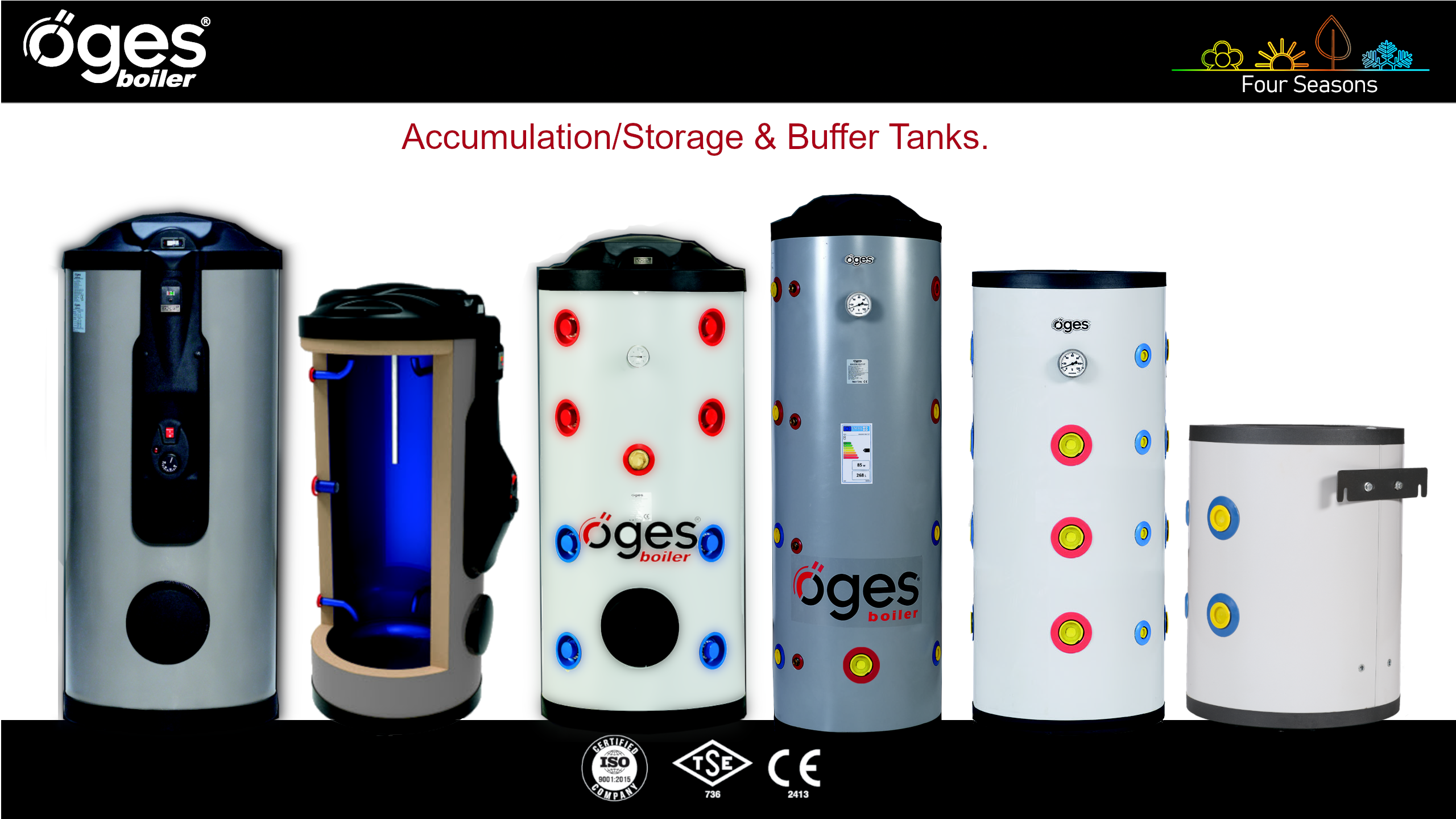

Accumulation tanks are the installation equipment that stores the energy and the water that it gets from the heat sources with the highest efficiency. By prolonging the life of heating resources, it saves money and reduces the cost of heating. In areas where boilers are inadequate, accumulation tanks are used with exchangers and offer very efficient effects.

WORKING PRINCIPLE

Accumulation tanks are systems that store water by heating it in the tank with heats coming from various sources such as heat pumps, solid fuel boilers, solar energy, and plate heat exchanger.

Capacity: 100 L. - 6000 L  Inner Surface: 100% Hygienic. According to DIN 4753 Titanium Based Enamel (Glass Surface) Coating. Insulation: 100 L - 600 L Sheet covered on polyurethane 800 L - 6000 L Soft Sponge On Winlex Boiler Operation Pressure: 10 Bar (Max.) Boiler Test Pressure: 18 Bar (Max.)

ADVANTAGES

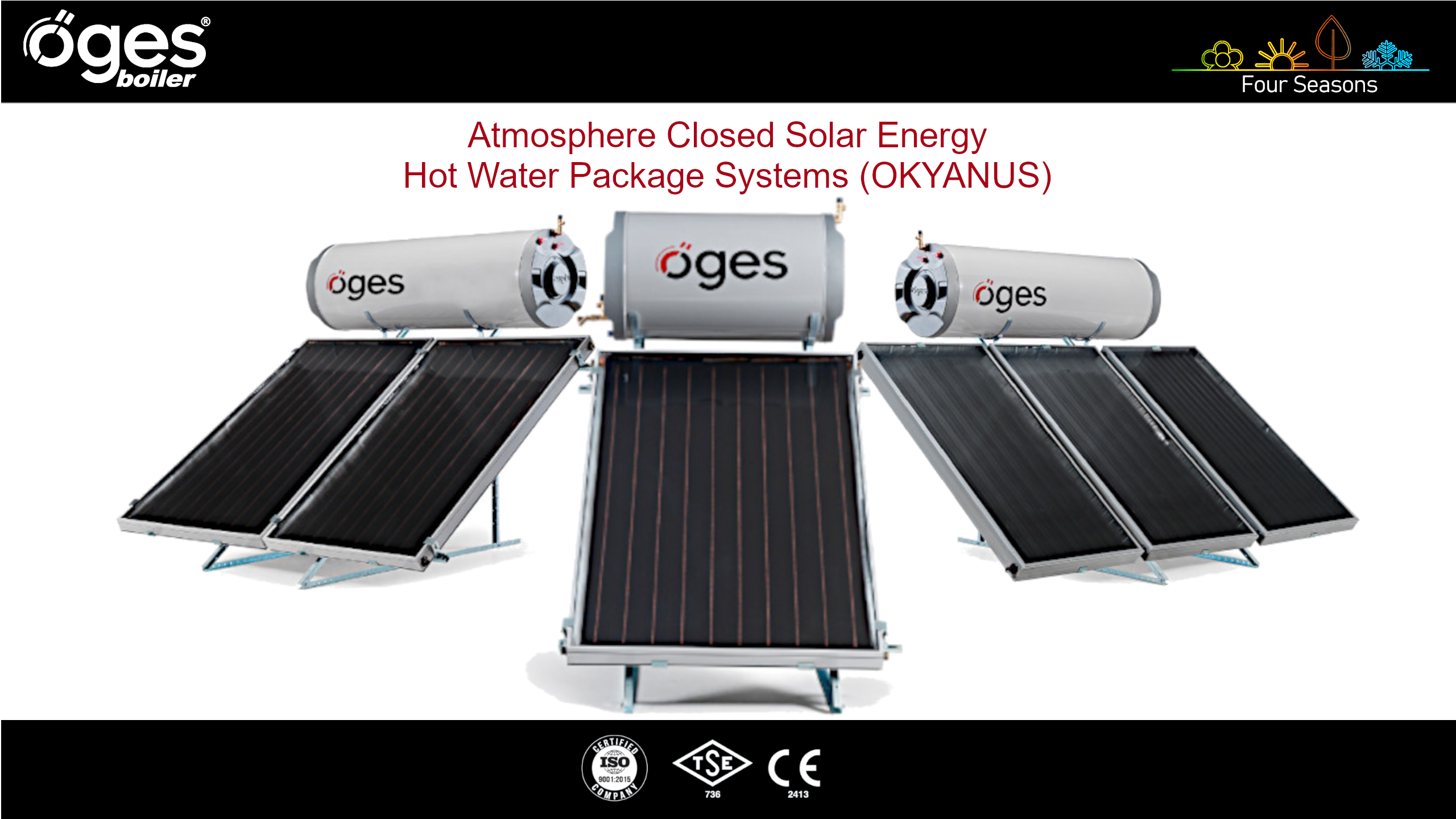

OKYANUS systems are pressure systems that work directly with city network without cold water supply or float addition as an open circuit without anti-freeze or a closed circuit with anti-freeze. The inner surface is coated with titanium-based enamel, and it is hygienic and has a long service life.


The loss of antifreeze is the minimum because it is closed to the atmosphere. Especially, it has higher performance and more convenient usage characteristics than the conventional float systems in terms of hot water comfort designed for areas where there is no water cut.

WORKING PRINCIPLE

Such systems are natural circulation and operate under pressure. It provides hot water as much as the network pressure. It works according to the closed containers principle and reaches to the network pressure during the first filling before the system starts to work. The system water capacity can be increased by connecting in parallel.

• All tanks are polyurethane insulated.
• All Collectors are Insulated Glass Wool.
• Mounting materials are not included in the package.(Pipe,Fittings,Glass Jar,Safety Group Etc ...)
• In Packing Systems Max Series S Collectors are Flat Glass,
• L Collectors are prismatic glass.

LIFOS 150 L

• 150 L Enamel Tank+Single L Case Aluminium/Copper/Copper Selective Collector+Stand in Set.

ASYA 200 L

• 200 L Enamel Tank+Double S Cases Aluminium Collector+Stand in Set

HISAR 300 L

• 300 L Enamel Tank+Triple S Cases Aluminium Collector+Stand in Set

ADVANTAGES

The inner surfaces of the boiler tanks are covered with a titanium-based enamel (Glassy Surface).By applying this process; the resistance against corrosion is increased in accordance with the usage purposes of boilers. As the surface roughness of the tank is reduced by this process, the accumulation of material and bacteria on the surface during its use is reduced to a large extent and system hygiene is ensured. Fast boilers prevent the formation of quenching zones thanks to their special serpentine designs. Titanium enamel coating prevents bacterial growth and corrosion.

WORKING PRINCIPLE

They are pressure vessels that heat and store water in apartments and all kinds of facilities with a central hot water system thanks to the specially designed serpentine for the production and storage of clean hot water. The double serpentine boiler is a kind of boiler that performs the heating process by means of the double serpentine in the boiler (for example, Those working with 2 heat sources such as solar energy, natural gas, solid fuel heater) in order to make the instant heating more powerful.

Single Serpentine Boilers

Capacity: 100 L - 6000 L

Insulation: 100 L - 600 L Sheet covered on polyurethane

Double Serpentine Boilers

Capacity: 160 L - 6000 L

Insulation: 160 L - 600 L Sheet covered on polyurethane

Single and Double Serpentine Boilers

Inner Surface: 100% Hygienic. According to DIN 4753

Titanium Based Enamel (Glass Surface) Coating.

800 L - 6000 L Soft Sponge On Winlex

Boiler and Serpentine Operation Pressure: 10 Bar (Max.)

Boiler and Serpentine Test Pressure: 18 Bar (Max.)
