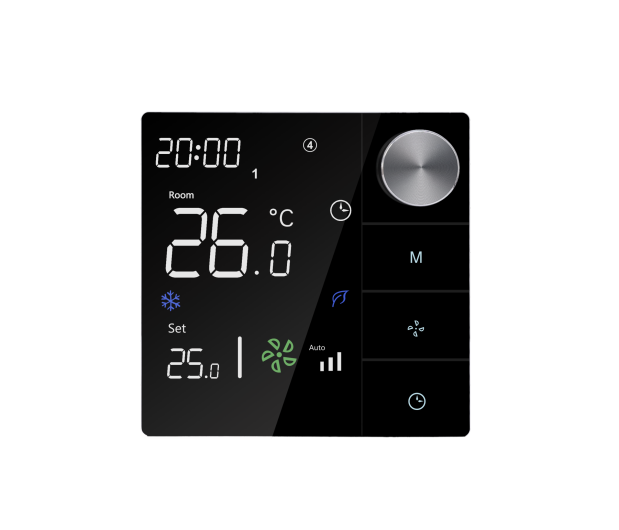

WI-FI FAN COIL THERMOSTAT

1.Opentherm communication
2.Delayed Start & TPI Technology for maximum energy savings
3.7 day, 5/2 or 24 hour operation offering full flexibility over your heating control
4.Automatic summer/winter time change
5.Easy to use, wall or stand mountable
6.Holiday Mode to allow control when you’re away saving energy

Setpoint Range: 5~35 ℃
Accuracy/Tolerance +/-1℃
Timing Tolerance : ＜1%
Thermistor : 10K Ω@25 ℃
Storage Conditions Temp.: -10~60 ℃
Humidity:＜ 90% r.h.
Network:2.4 Ghz
5 Ghz(Option)

Power supply: 230 VAC (+10 % -15%), 50... 60 Hz (±3 Hz)
Measurement Temperature Range:-40~110 °C
Setting Temperature Range:-40~40 °C(default)
Analog inputs:1x inputs (Room Temperature Probe and Evaporator Probe or Condenser Probe) configurable via configuration parameter for NTC probes.
Analog inputs :2 x NTC (10 KΩ @ 25 °C, 77 °F) Type of sensor: ß3950.
From -30 to 80 °C. Resolution: 0.1 °C.
Digital inputs: 1 input (door switch input or multifunction input)
Digital inputs (free of voltage contact 5 VDC 1.5 mA)
Digital outputs:
- 1x Output (SPST electromechanical relay with 16 A res. @ 250 VAC) for Compressor.
- 1 x Output (SPDT electromechanical relay with 16 A res. @ 250 VAC) for Defrost management
- 1x Output (SPST electromechanical relay with 5 A res. @ 250 VAC) for Evaporator fan management.

TRV Zigbee Radiator Thermostat

Setpoint Range:5 ~35°C
Accurancy:±1°C
Power Supply:2XAA batteries
Sensor:Internal sensor
Features:LED display
Heating function:°C display
Weekly Programmable:7 days Period Weekly Programmable
Application:Electric Floor Heating
Packing:(1pc thermostat/plastic bag+1pc user manual)/white inner box

1.Opentherm communication
2.Delayed Start & TPI Technology for maximum energy savings
3.7 day, 5/2 or 24 hour operation offering full flexibility over your heating control
4.Automatic summer/winter time change
5.Easy to use, wall or stand mountable
6.Holiday Mode to allow control when you’re away saving energy

Setpoint Range: 5~35 ℃
Accuracy/Tolerance +/-1℃
Timing Tolerance : ＜1%
Thermistor : 10K Ω@25 ℃
Storage Conditions Temp.: -10~60 ℃
Humidity:＜ 90% r.h.
Network:2.4 Ghz
5 Ghz(Option)

Power supply: 230 VAC (+10 % -15%), 50... 60 Hz (±3 Hz)
Measurement Temperature Range:-40~110 °C
Setting Temperature Range:-40~40 °C(default)
Analog inputs:1x inputs (Room Temperature Probe and Evaporator Probe or Condenser Probe) configurable via configuration parameter for NTC probes.
Analog inputs :2 x NTC (10 KΩ @ 25 °C, 77 °F) Type of sensor: ß3950.
From -30 to 80 °C. Resolution: 0.1 °C.
Digital inputs: 1 input (door switch input or multifunction input)
Digital inputs (free of voltage contact 5 VDC 1.5 mA)
Digital outputs:
- 1x Output (SPST electromechanical relay with 16 A res. @ 250 VAC) for Compressor.
- 1 x Output (SPDT electromechanical relay with 16 A res. @ 250 VAC) for Defrost management
- 1x Output (SPST electromechanical relay with 5 A res. @ 250 VAC) for Evaporator fan management.
