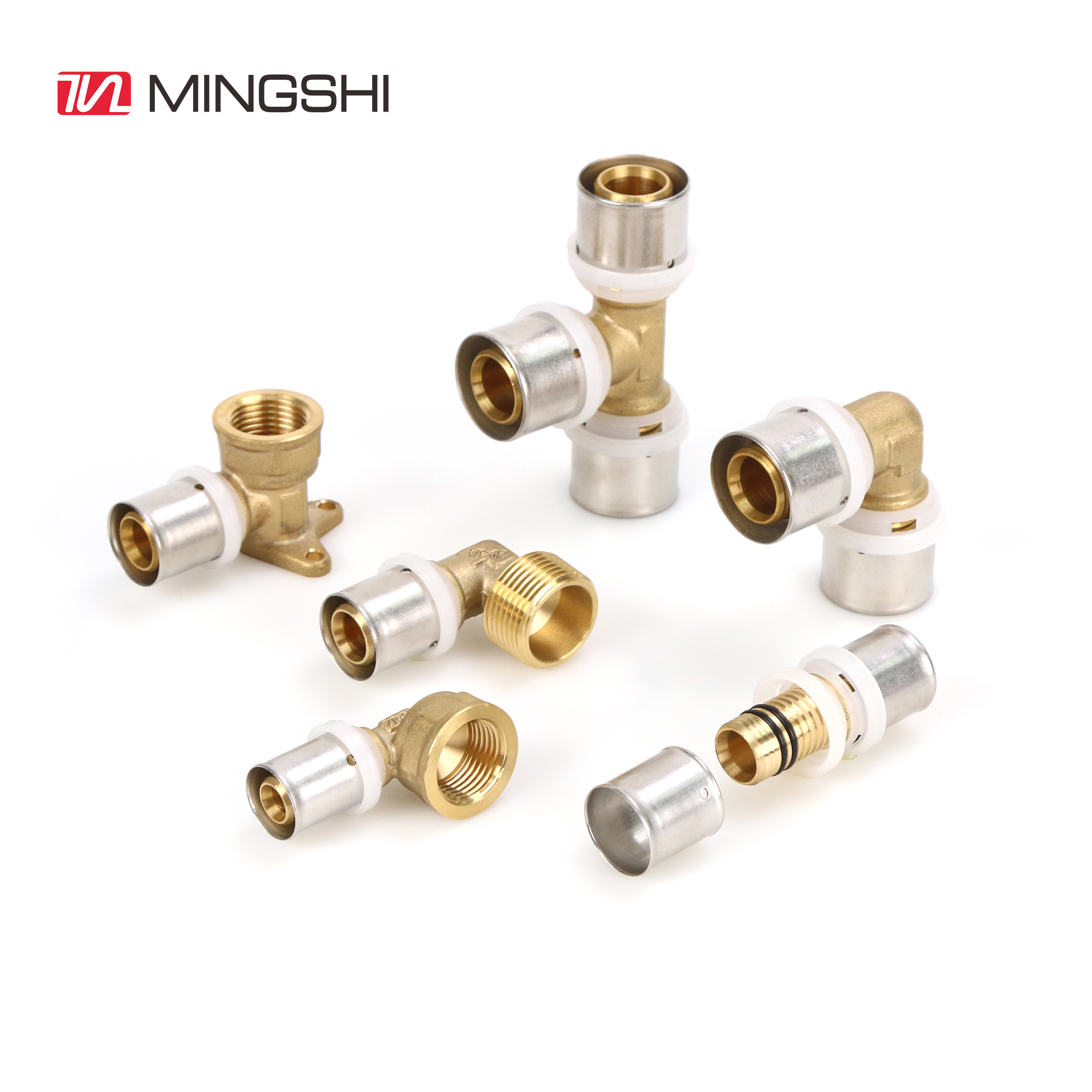

-Specifications:1216 mm/1620 mm/2025(26) mm/2632 mm/3240 mm/4150 mm/5163 mm.

-Type:U profile/TH profile/Multijaw profile.

-Certificates:AFNOR,CSTB,AENOR, WRAS, SKZ,WATERMARK,EPD...

-The products are suitable for connecting parts of fluid pipes. The operating temperature is -20℃ to 110℃ and the operating pressure is ≤2.5MPa.

-Operating Mediums: Water, unsaturated vapor, compressed air, oil & grease, weak acid, weak alkali and appropriate refrigerants, which should have weak corrosively for brass.

-Applicable Pipes: Aluminum plastic composite pipes, PE-X pipes, PE-RT pipes, PB pipes, Steel plastic composite pipes, etc.

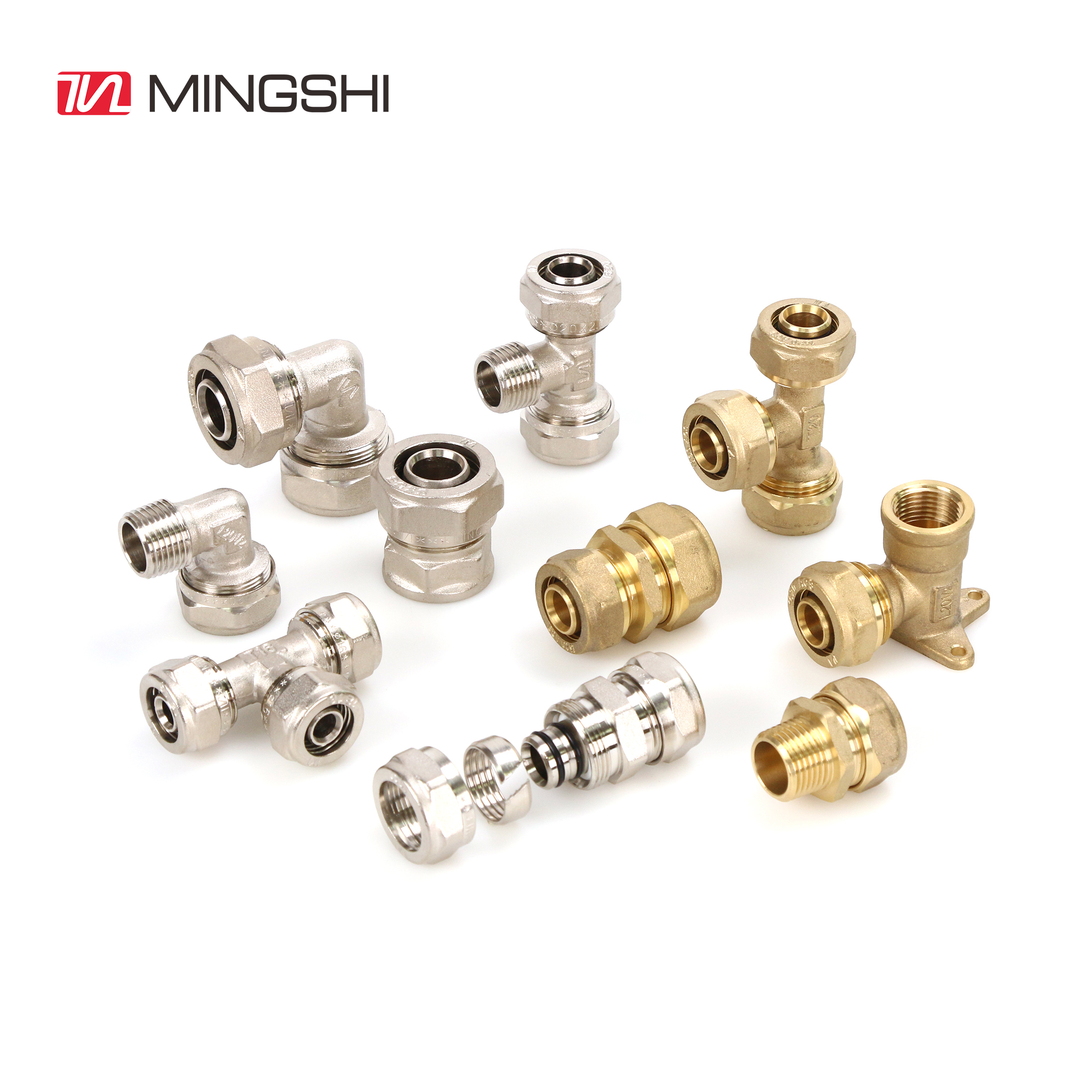

-Specifications:1216 mm/1620 mm/2025(26) mm/2632 mm/3240 mm/4150 mm/5163 mm.

-Certificates:AFNOR,CSTB,AENOR, WRAS, SKZ,WATERMARK,EPD...

-Operating Mediums: Water, unsaturated vapor, compressed air, oil & grease, weak acid, weak alkali and appropriate refrigerants, which should have weak corrosively for brass.

-Applicable Pipes: Aluminum plastic composite pipes, PE-X pipes, PE-RT pipes, PB pipes, Steel plastic composite pipes, etc.

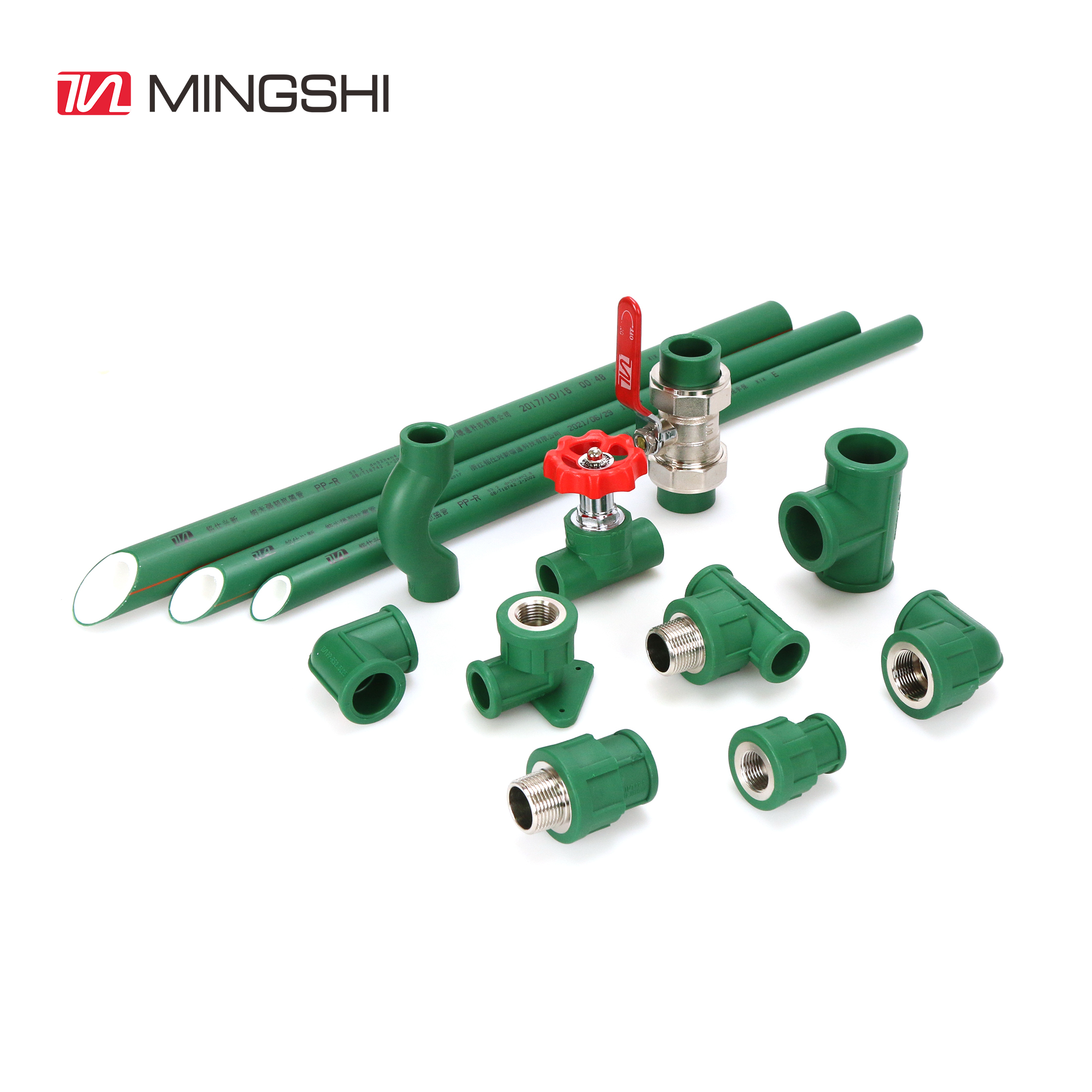

-Specifications:20 mm/25 mm/32 mm/40 mm/63 mm/75 mm/90 mm.

-The fittings are suitable for connecting parts of PP-R pipes. The operating temperature is 0℃ to 90℃. The operating pressure is ≤2.5Mpa.

-Applicable Mediums:Cold and hot water.

-Applicable Pipes:S5/S4/S3.2/S2.5 series of PP-R pipes and PPR-AL-PPR pipes.

-Caliber: D25.

-Nominal Pressure: PN10.

-Applicable Medium: Water, Air.

-Operating Voltage: AC24, 110V, 230V.

-Power Consumption: 5W.

-Room Temperature Control Range: 5-35℃（±2）.

-Whole-Valve Opening Time: 3-5 min.

-Specifications:1216 mm/1620 mm/2026 mm/2632 mm/3240 mm/4150 mm/5163 mm.

-Certificates:AFNOR,CSTB,AENOR, WRAS, SKZ,WATERMARK,EPD...

-Temperature and Pressure Resistance: max. up to 95 ℃，1-1.25Mpa.

-High Mechanical Strength: not easy to be damaged or cracked.

-Corrosion Resistance: resistant to acid, alkaline and salt solutions.

-Cleanness and Health: no harmful substances, mould-proof, non-rusting and non-scaling.

-Light Weight: arbitrary length with convenient installation.

-Flexibility and Non-Rebound: can be bent without being heated, reduced the use of fittings.

-Heat Preservation: 1/100 heat conductivity of metal pipes, excellent heat preservation and outstanding energy conservation.

-Anti-Vibration and Impact Resistance: the composite material can effectively reduce and absorb the pipe vibration so as to lower the noise.

-Long Service Life: high creep strength and long service life.
