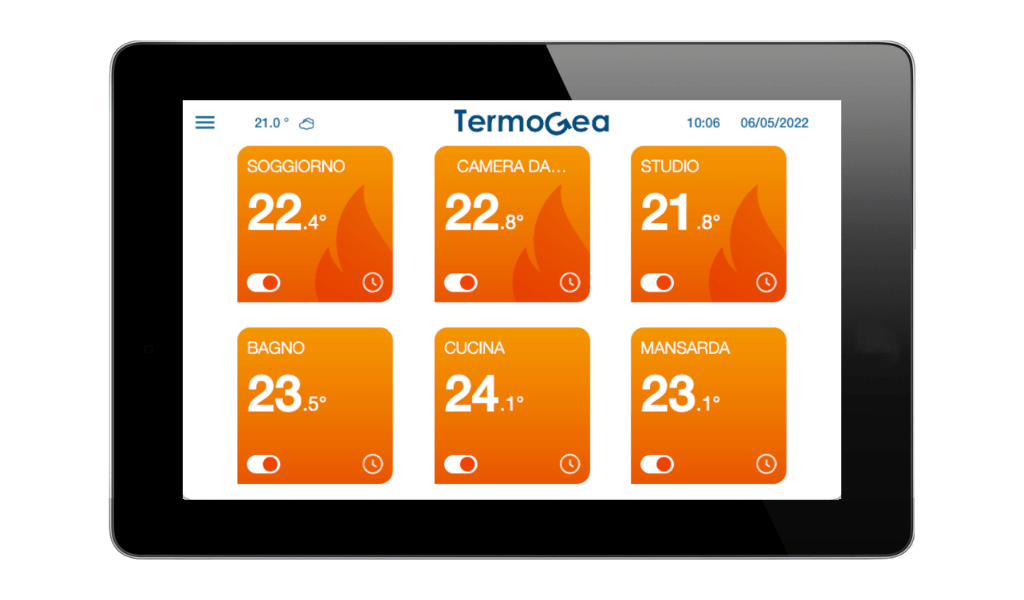

The control panel is a 7 ″ LCD touch screen with 800 × 480 pixel resolution. From here you can manage the thermoregulation of several climate zones from a single control point.

Thanks to the smart multi zone thermostats it is therefore possible to take action on heating, cooling as well as on humidity control and air quality.
If a Controlled Mechanical Ventilation system is present, it is also possible to intervene remotely through the APP.

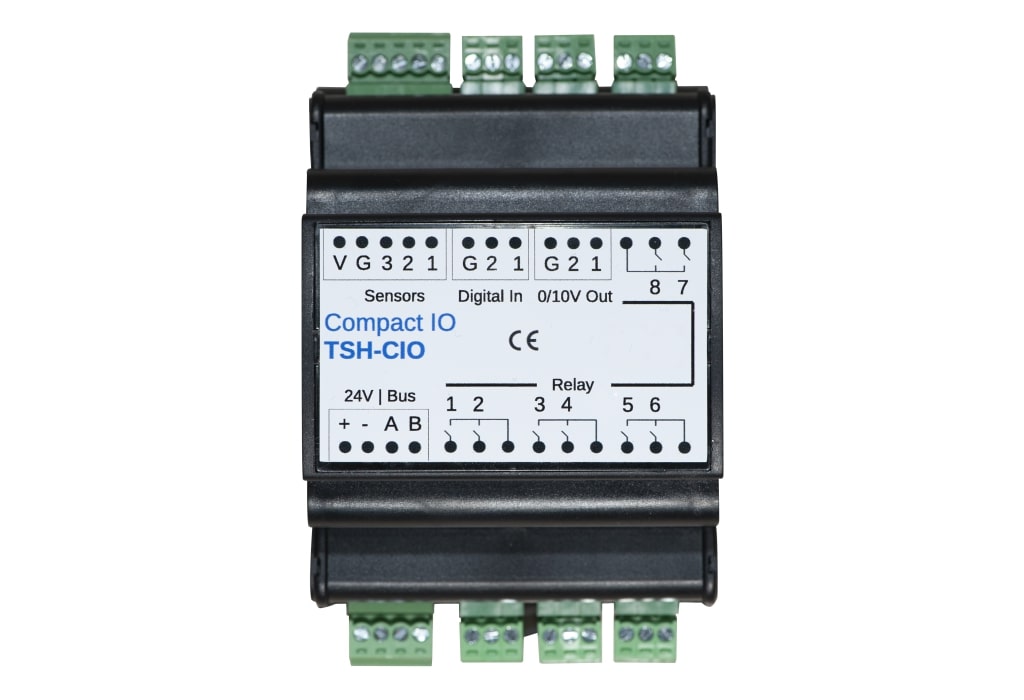

Card with: 8 relay outputs – 2 outputs 0-10V – 3 inputs for T probes – 2 digital input.

Modbus expansion module for managing up to 8 terminals.

Actuator with 0-10V relay outputs that interfaces with the TSH or TST regulator, through Modbus.

Utilities up to a maximum load of 16 A can be connected to the relay outputs.

Installation on DIN bar.

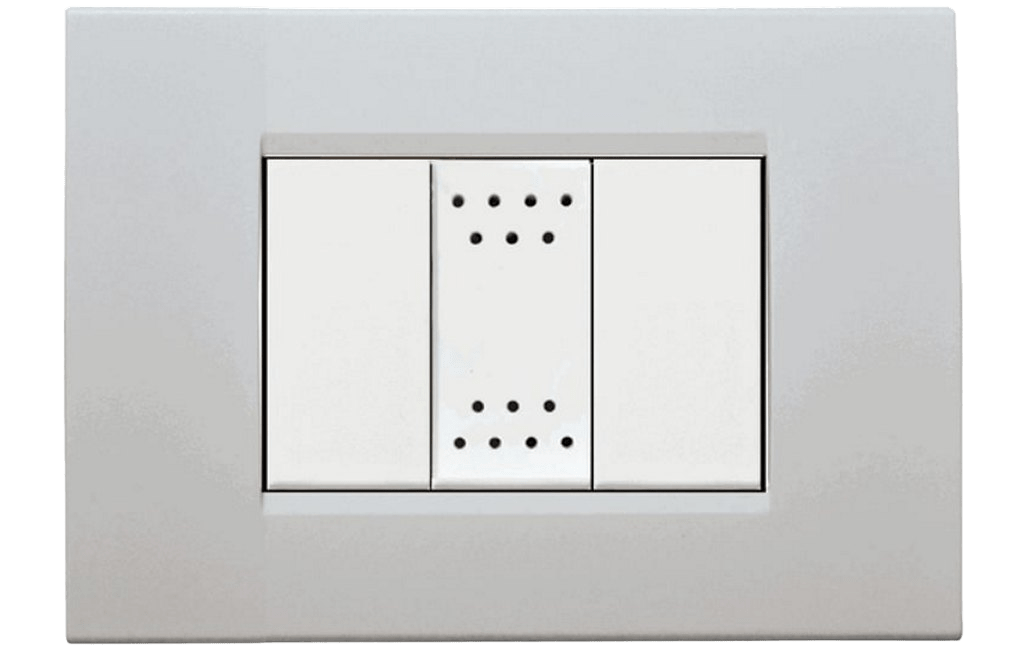

This sensor detects the main room parameters: air humidity, temperature and quality (VOC – Volatile Organic Compounds). The CO2 concentration is calculated from the measured parameters.

Digital sensors are used as measuring elements for detecting the relative humidity of air and temperature, in order to ensure correct measurement results.
The air quality is detected by a mixed gas sensor (VOC).

Together with the VOCs, an IAQ air quality index is provided. It is a number that, based on the range, can indicate air saturation and therefore the quality according to regulations.

Also available with one relay on board.

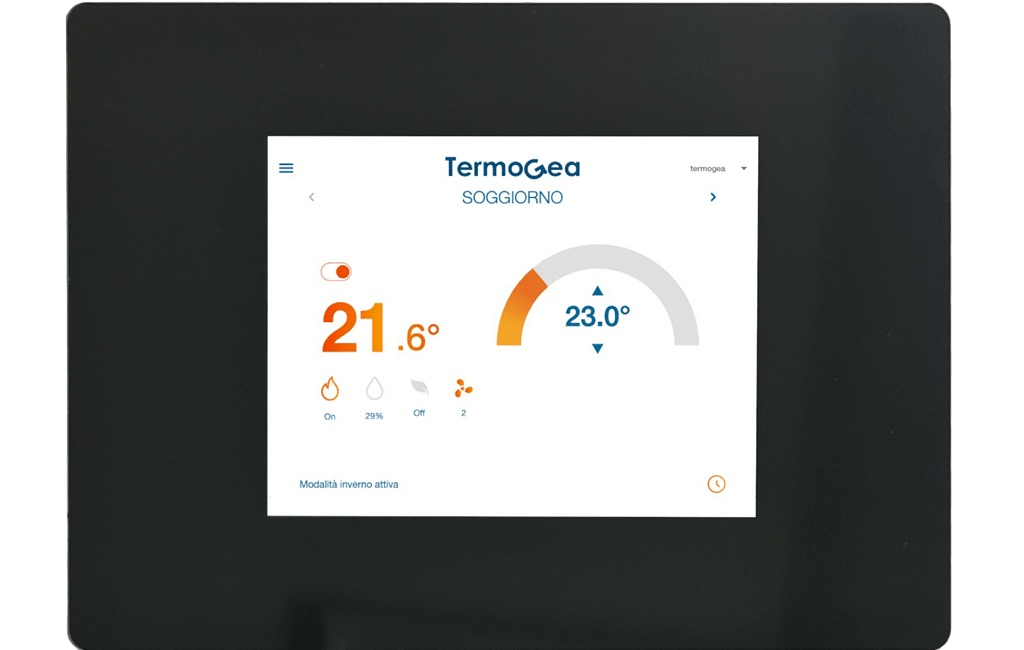

Touch control panel with integrated sensor for temperature and humidity detection.

It is a multi-zone panel! You can read and control the temperature and humidity of the other zones of the house from the single panel.

Equipped with relay, it can act as a room thermostat and humidostat.

The 0-10V output allows you to control fan coils equipped with inverters.

It is connected to the Termogea system and APP via the Modbus cable.

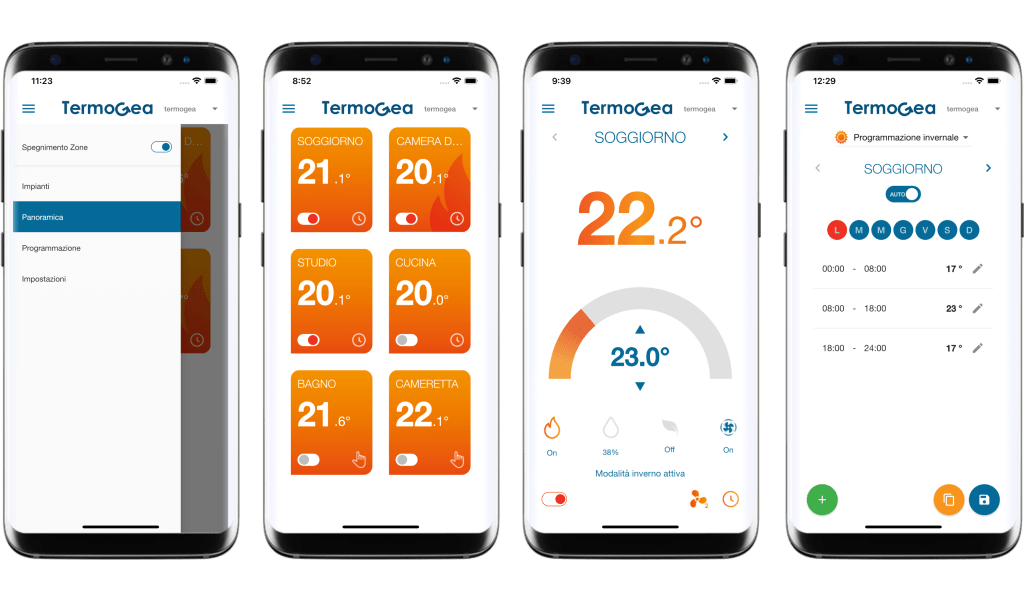

Termogea APP turns your phone into a personal digital thermostat. In this way you are able to check your home at any time and wherever you are. The control panel of your heating and cooling system is your smartphone.

You can remotely:

• Set the desired temperature levels for each room.
• Turn the system on or off.
• Schedule the on/off time bands for both heating and cooling.
• Program the Controlled Mechanical Ventilation.

TERMOGEA APP is available for Android & iOS.
