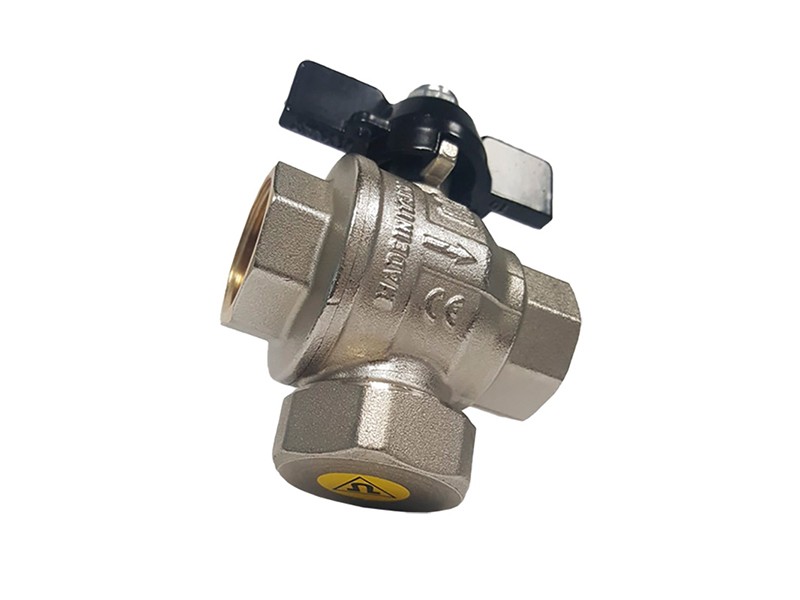

Ball valve with integrated filter for collection of the iron powder. Thanks to its peculiar structure, you can have a ball valve, a filter and a system with magnet for iron powder collection in a single product. Available in DN 15 and DN 20.

Standard series, full bore, ISO 228.Perfect low and high pressure sealing. Easy to inspect and easy maintenance. The filter is a stainless steel wire mesh with 0.8 mm (3/4") diameter holes and a magnet with 12,000 GAUSS.

EKO FILTER MAGNET integrates the function of protecting the system from impurities with the normal ON OFF function of a ball valve with the additional function of intercepting ferrous dust. It is very compact and can therefore be installed in narrow spaces where the alternative Y-filter and valves are too bulky, with the addition of a magnet to capture metal parts eventually present in the fluid.

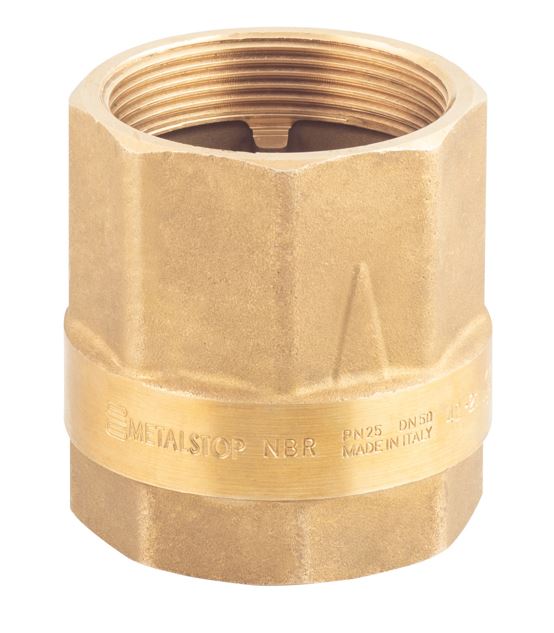

Check valve with metal jumper

Metalstop check valve has been designed with metallic jumper in order to guarantee maximum flow rate with low pressure drops silent operation. The particular geometry of the shutter allows low pressure drops compared to the most common check valves on the market and can be installed horizontal, vertical and oblique.

Suitable for all types of plumbing, heating and pneumatic systems where no plastic components are required. For hot and cold water, compressed air, oils. Available with NBR or FKM (upon request). FKM version is also suitable for applications with non-halogenated hydrocarbons in general (fuel, kerosene etc.) and high temperature.

Version F/F ISO 228 available in the sizes from 1/2" up to 2".

Thanks to a series of acquisitions of companies specialised in the electro-mechanical sector, Enolgas Bonomi S.p.a. has undertaken the design and production of rotary electric actuators. Electric actuators are suitable for automating valves with Enolgas quick mounting connection. The exclusive quick coupling is practical and solid, while also ensuring quick and efficient maintenance. Besides producing standard models for thermo-hydraulic applications, Enolgas is nowadays also committed to the development and production of a series of special actuators that meet the most varied installation and performance.

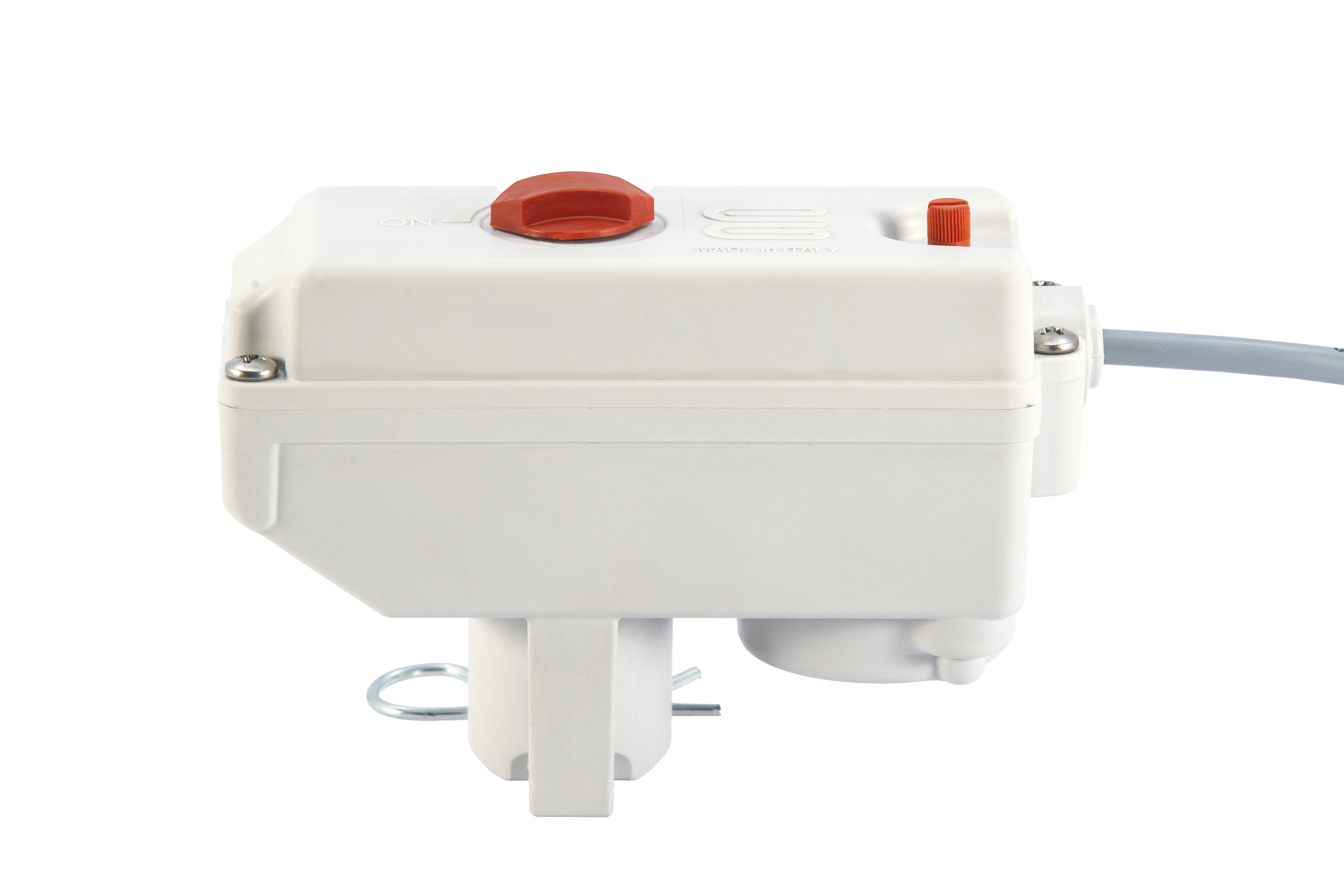

One among these special actuators is MINI-ACTUATOR, which is a quick mounting electric actuator and is equipped with a manual unlock device. MINI-ACTUATOR is characterized by extremely reduced dimensions and can therefore be installed in narrow spaces. It is suitable for 1/2" and 3/4" ball valves and is available with power supply voltages 12V DC,24V AC/DC, 230V AC. Standard version is IP54, but it can also be delivered in IP65 version upon request. UL approved actuator 24 V AC/DC is also available upon request.

Motorised valves by Enolgas Bonomi S.p.A. have been developped in the design and production department of electric actuators belonging to the Systems Division, which was created by Enolgas Bonomi in 2009 thanks to the acquisition of a company in the electronic automation sector, specialised in the engineering and production of motorised valves.

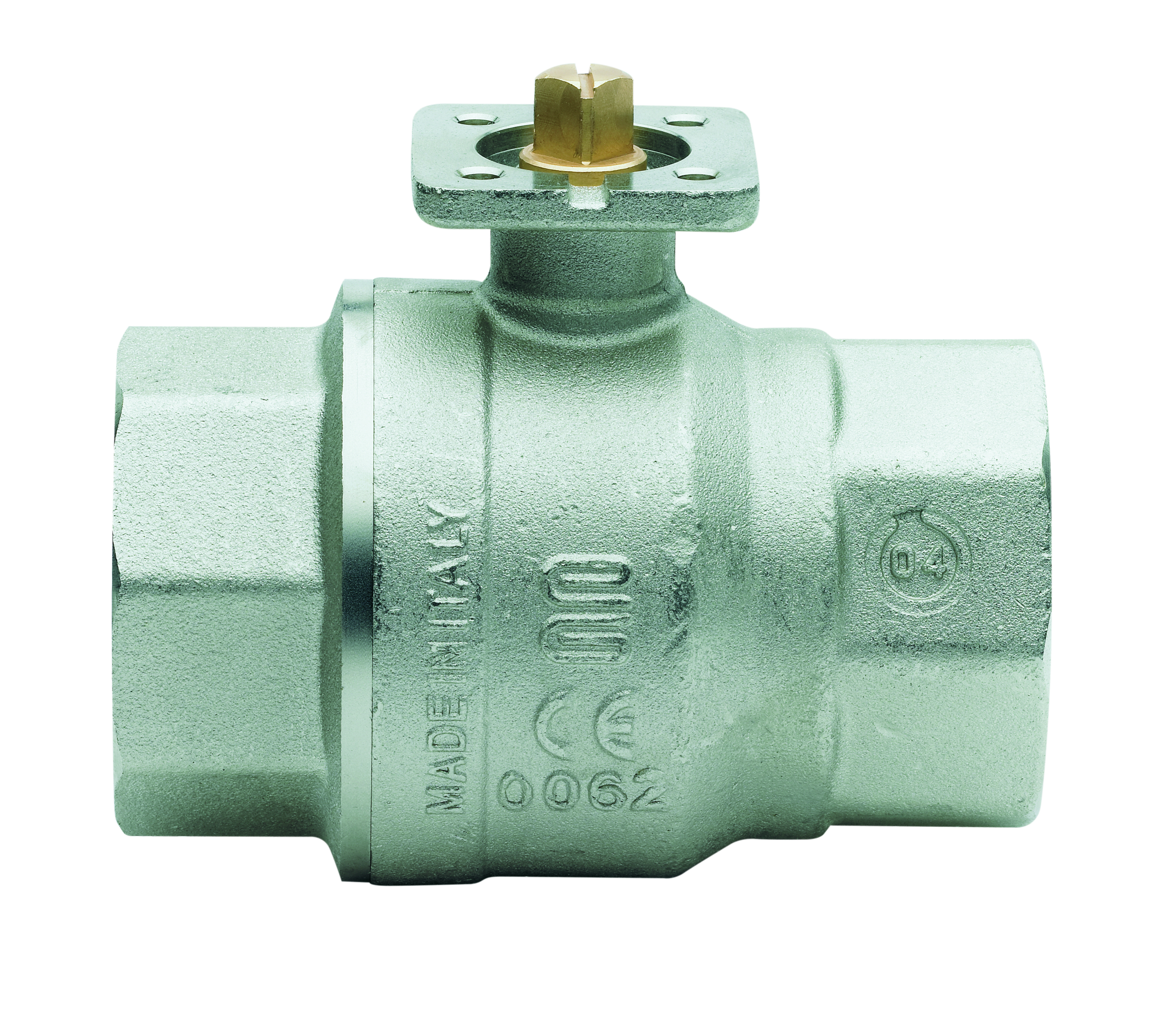

The S · O · M ISO-TOP series represents the excellent compromise between a professional valve and the high value for money. Thanks to the ISO 5211 flange, full compatibility with standard actuators on the market is guaranteed. The reduced manoeuvring torque allows a substantial reduction in the choice of electric and pneumatic motors. This advantage takes the form of significant cost savings for the entire valve package plus actuator.
These valves are suitable for applications with hot and cold water, air, hydrocarbons in general and non-aggressive fluids.

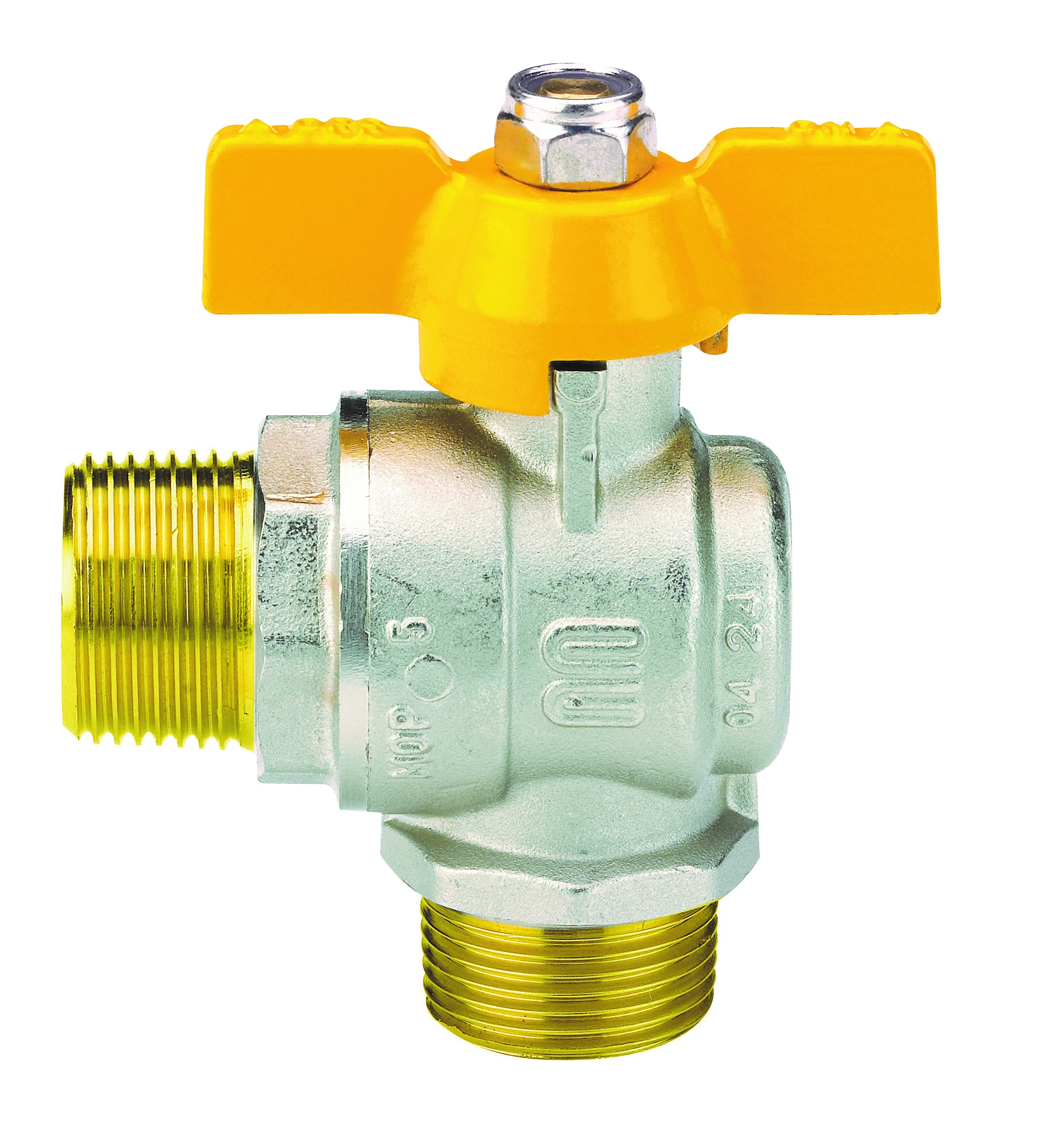

OMEGA gas valves: heavy series, very high quality, EN331 certification

The Omega series was the first gas valve series, made in the 70s, a product that represents the historicity for our customers.
It is an extremely heavy valve designed specifically for gas applications.
It is suitable for all types of gas (city, methane and liquid gases) as well as hot and cold water and compressed air distribution systems.

The Omega series enhances the constant of the company philosophy that from its origins to today is committed to the creation of high quality products.
