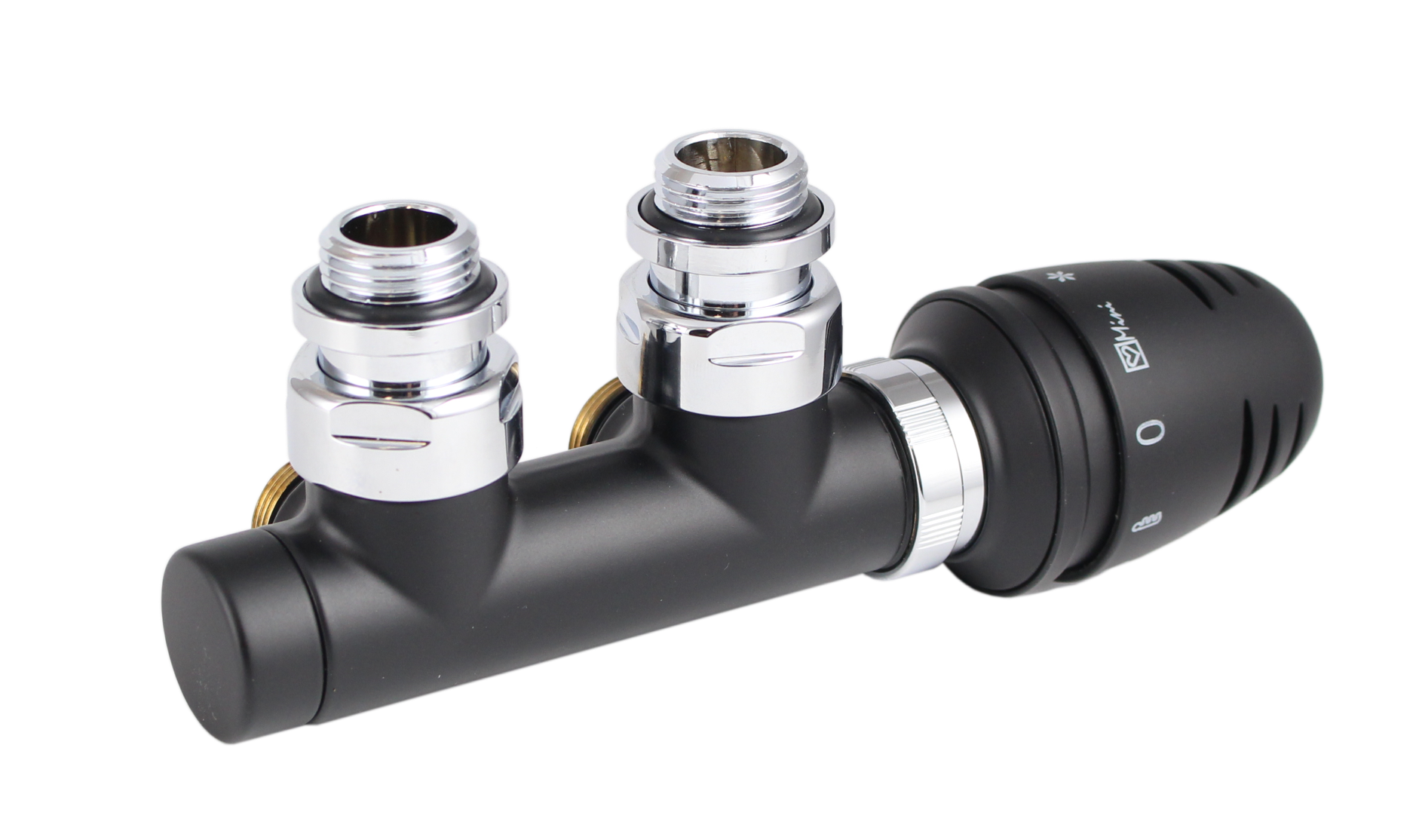

HERZ MINI DE LUXE

Competence meets design

The MINI thermostatic head from the DE LUXE series is particularly impressive because of its size. At 7.5 cm long and 4.5 cm in diameter, it is one of the smallest thermostatic heads with a hydrosensor. In combination with heating fittings matched to the DE LUXE MINI, the result is a harmonious unit that integrates into any colourful room concept.

More comfort when heating by regulating your own personal feel-good temperature and a wide selection of different colours and designs. A great deal of expertise and many years of experience have gone into the well thought-out construction design of the DE LUXE products from HERZ. Our goal: that you feel comfortable, guaranteed. 4 colour variants for thermostatic heads and connection elements also turn your radiator into an interior design eye-catcher.

With DE LUXE fittings, design-conscious people will find technically sophisticated products that meet the highest aesthetic standards. This new family consisting of thermostatic valves TS-98-V, shut-off valves RL-1, connection sets HERZ-3000 or TS-3000 and sparge pipe valves VUA plus corresponding accessories represents almost the entire range of radiator valves.

- Noble design and perfect workmanship
- Wide variety of designs for any construction situation on site
- Uses the proven HERZ TS-98-V and HERZ TS-90 thermostatic valve technology
- Mini DE LUXE Colour in 4 additional colours: White, chrome-plated, vintage and matt black finishes
- Beauty down to the smallest detail
- Designed for new construction as well as renovation
- Sophisticated construction design
- Made in Europe

www.herz.eu

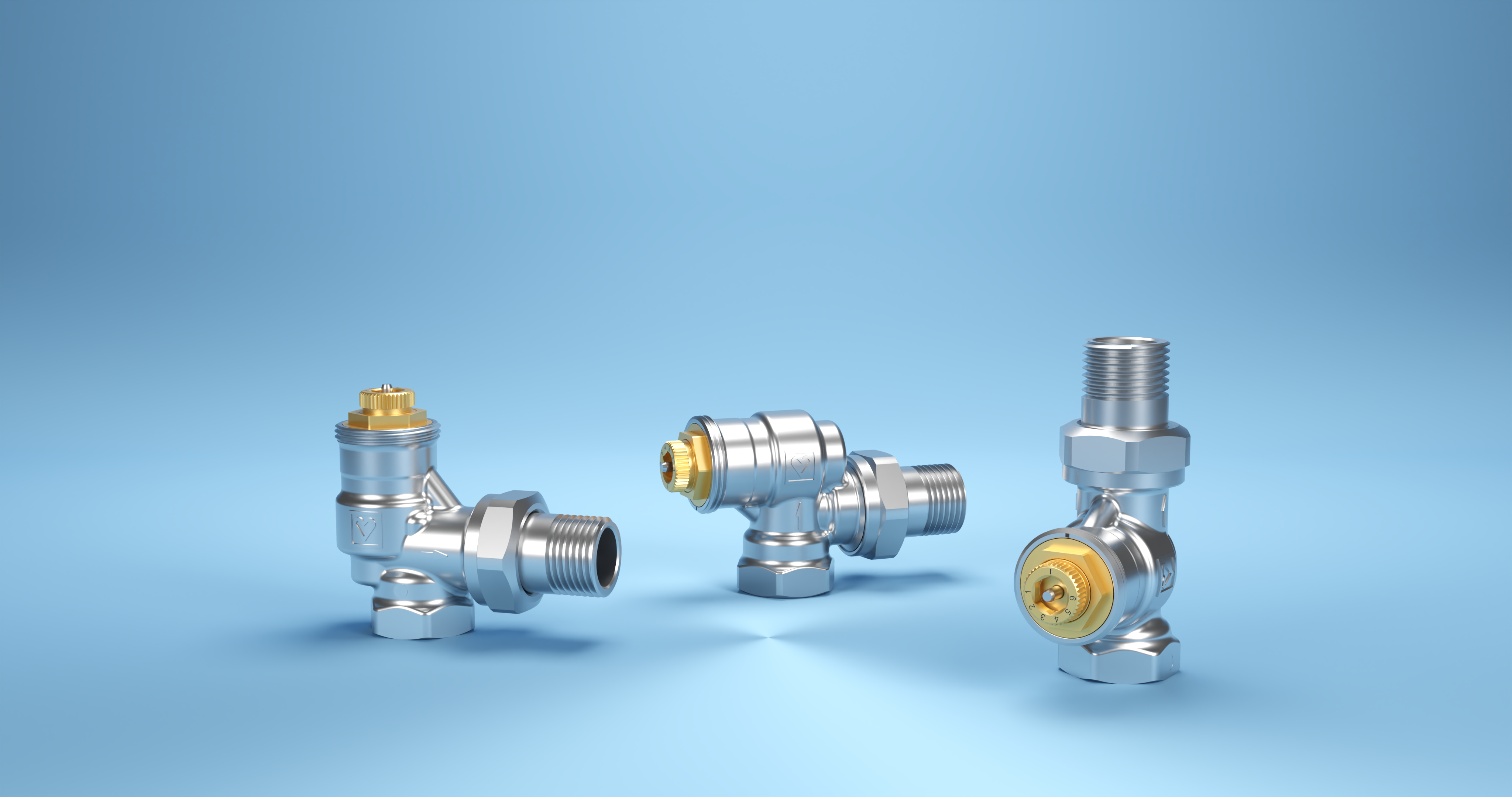

HERZ Dynamic thermostatic valves

Precise temperature control and automatic balancing

Dynamic thermostatic valves are mounted directly on radiators and combine the classic thermostatic valve with a differential pressure regulator in one housing. The integrated differential pressure regulator ensures that the required amount of water is available to each radiator. With a mounted HERZ thermostatic head, the required amount of water is automatically regulated depending on the set temperature.

Both an angle version and a straight-through version are available. Dynamic thermostatic valves are available in DN 15 and can regulate flow ranges from 10 l/h to 120 l/h, depending on the application.
The maximum differential pressure of 60 kPa enables a wide range of applications.

www.herz.eu

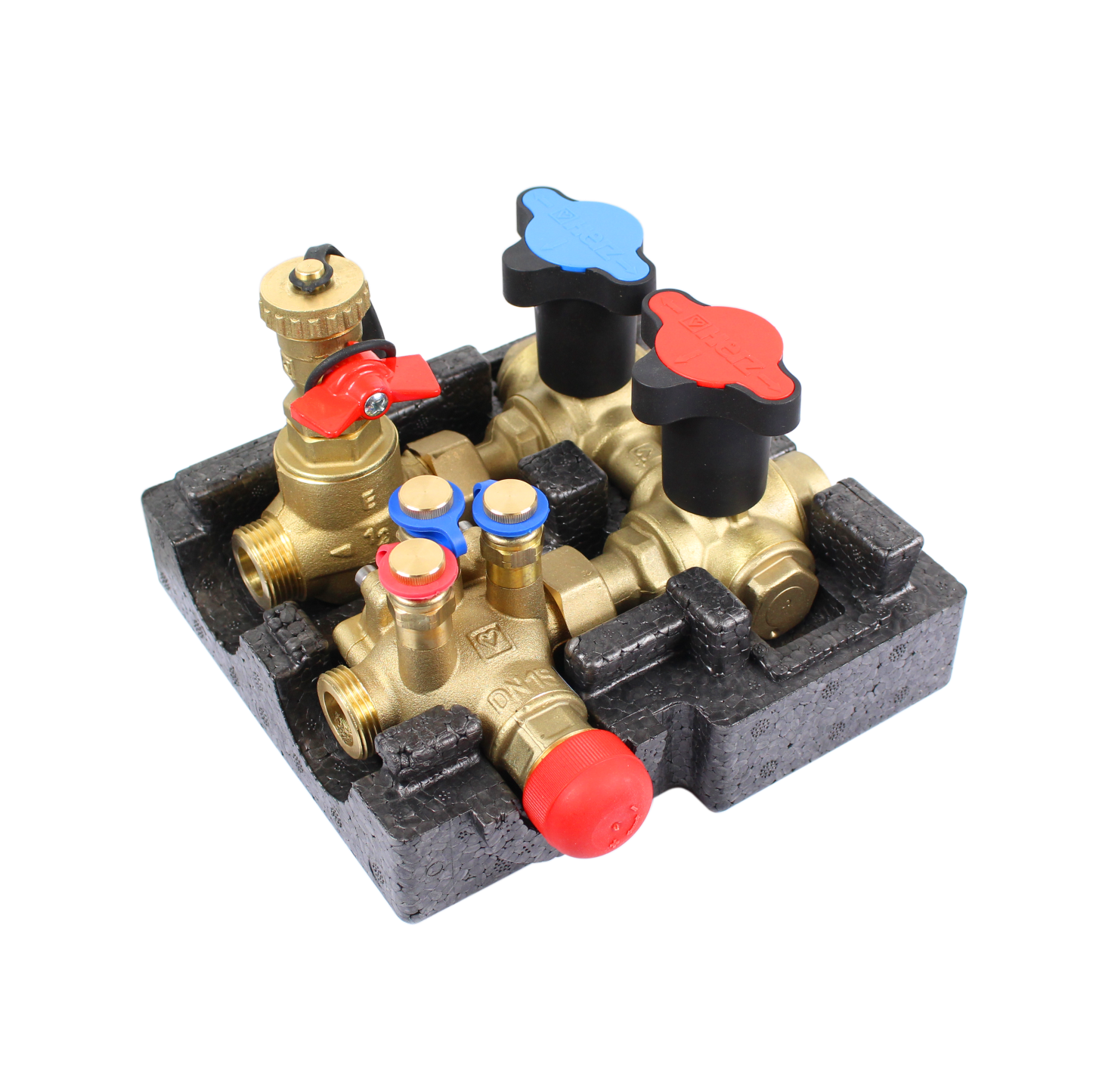

HerzCON - the all-rounder

With the HerzCON, HERZ Armaturen sets new accents in the field of installation time, ease of installation and installation safety when connecting fan coils.

A complete system unit with multifunctional ball valve block, venting valve, drain valve and strainer has been developed around the proven pressure-independent HERZ 4006 SMART combination valve. All required functionalities such as regulating, controlling, filling, flushing, backflushing, draining, solating and filtering are realized with the HerzCON in one unit. The water vapor diffusion-tight insulating box, which is supplied as standard, predestines the HerzCON for use in cooling systems and, of course, also in heating systems. Eight flow ranges in dimensions DN 15 to DN 32 and the possibility of using antifreeze mixtures complete the wide range of possible applications.

All dimensions have a PN25 pressure rating and the maximum differential pressure is 4 bar or even 6 bar, depending on the dimension. In contrast, a low minimum differential pressure allows the use of small pumps. Thermo-electric actuators or geared motor drives can be attached to the balanced control valve for low positioning forces. The systems can thus be operated in a highly energy-efficient manner. With HERZ you are always on the safe side, because the multifunctional HerzCON system unit is factory-tested and comes with the 5-year HERZ warranty.

www.herz.eu

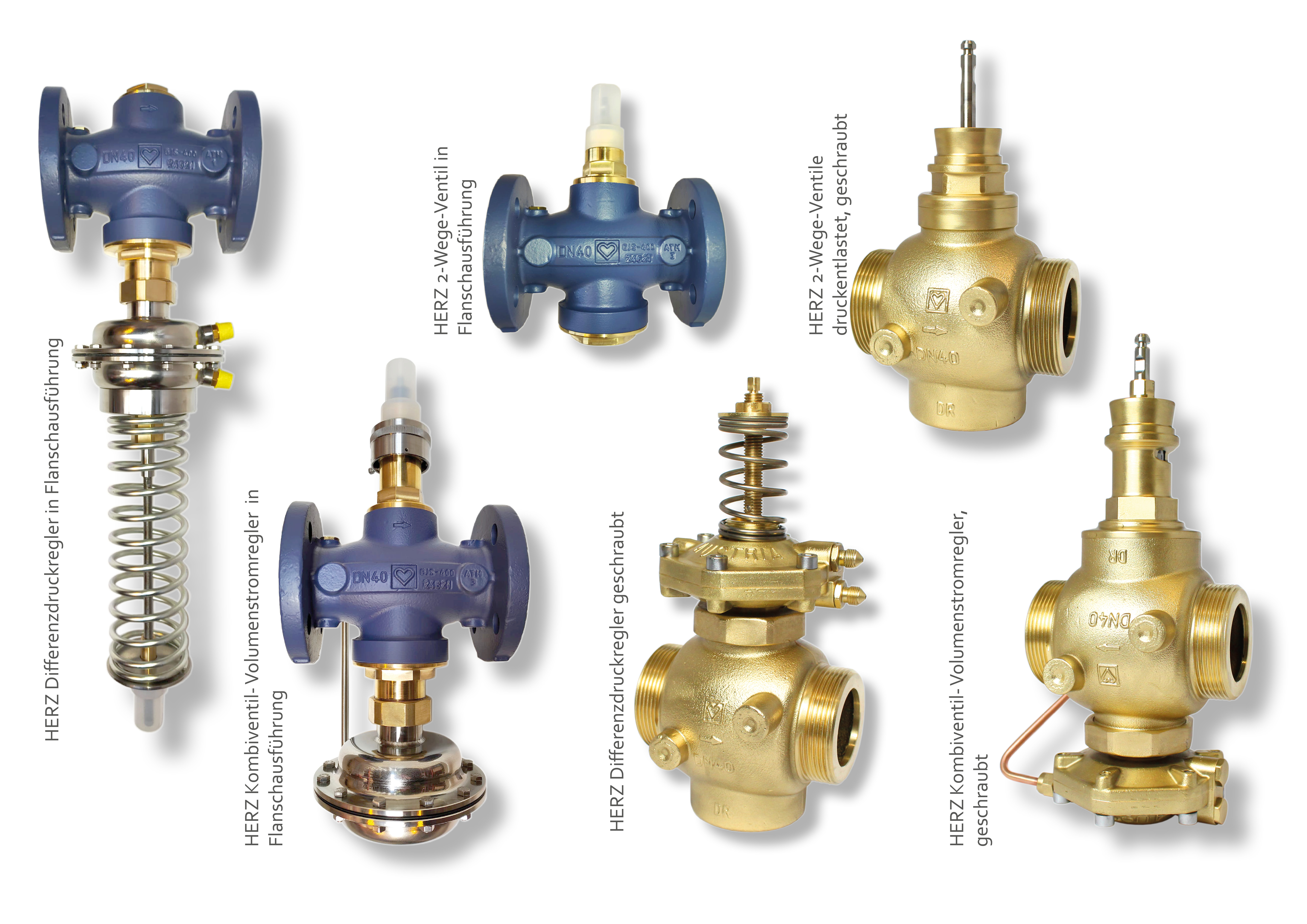

HERZ District heating valves

For temperatures up to 150°C and pressures up to 25 bar

District heating valves are installed in house transfer stations in the district heating network on the primary side. The advantage is that the range of use is guaranteed for temperatures up to 150°C and pressures up to 25 bar. This is ensured by special EPDM (ethylene-propylene-diene rubber) seals.

The installation dimensions, which are adapted to the market, allow easy installation in existing systems. HERZ district heating valves are tested on the test bench at the TU-Graz and impress with their quality.

For the time being, the valves will be available in dimensions DN15 to DN100. Depending on the dimension, screwed or flanged versions are available. Whether differential pressure regulators
and port valves or PICVs, HERZ offers the right product for every customer requirement.

www.herz.eu

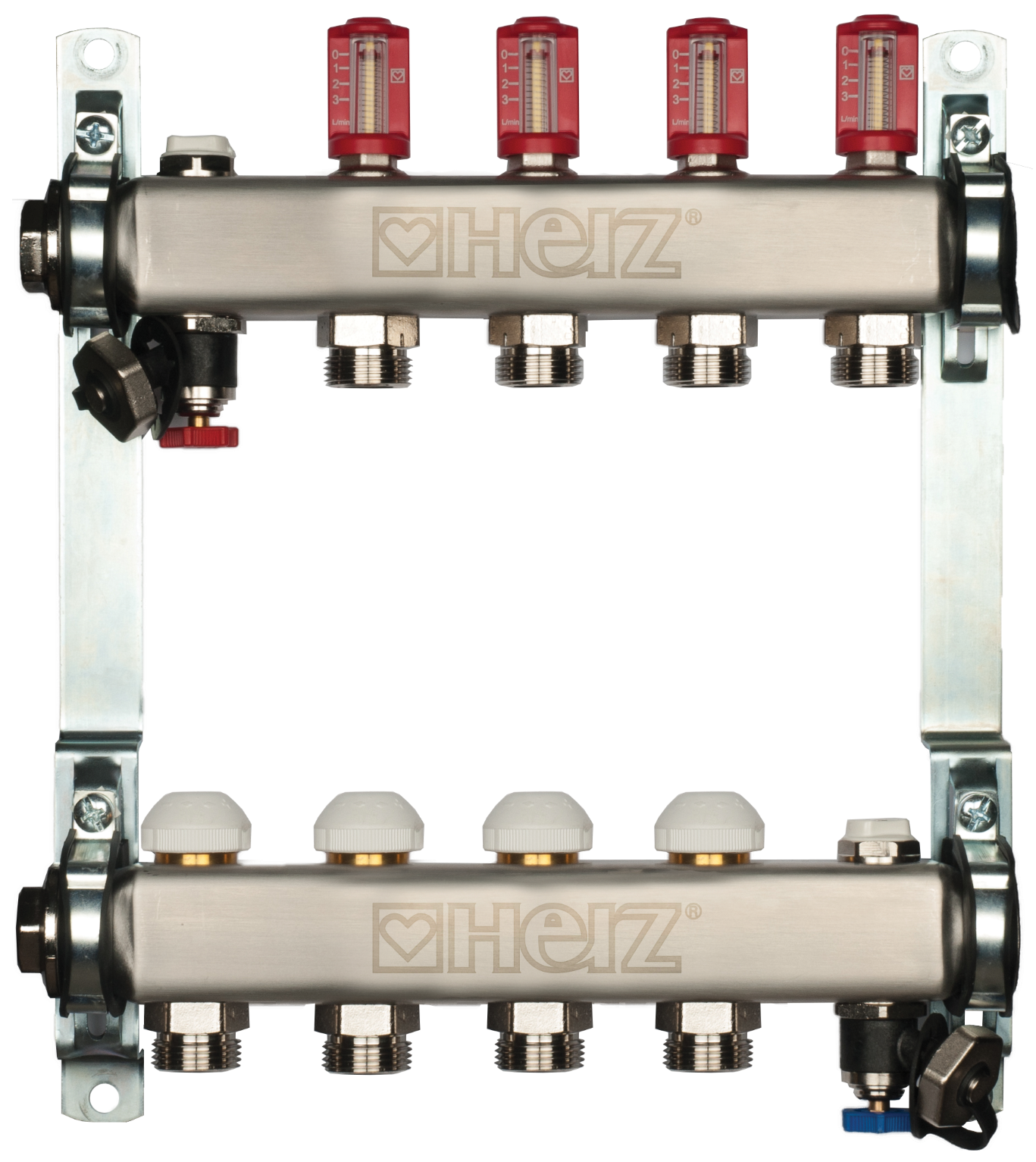

HERZ Stainless Steel Manifold - Room Temperature to Feel Good About

The new HERZ stainless steel manifold has been specially developed to meet the requirements of modern surface heating and cooling systems. Thereby the HERZ stainless steel manifold with 3 to 12 heating circuits is perfectly suitable for new buildings as well as for modernization. HERZ flowmeters in versions up to 3 l/min and up to 6 l/min in combination with HERZ thermostatic valves ensure excellent controllability. In combination with HERZ room temperature controls, optimum comfort for customers is ensured.

A seamless drawn special stainless steel profile, precisely machined with state-of-the-art equipment, guarantees the highest functionality and quality. Optional left or right connection with 1" IT as well as equipment with vent valves and fill and drain valves are obligatory. For visual identification of the flow and return manifolds, the handwheel of the fill and drain valve is designed in red for the flow and in blue for the return. Sound-absorbing brackets including mounting material are supplied as standard.
Due to the low installation height of 66 mm, the HERZ stainless steel manifold is ideally suited for installation in drywall. A wide range of HERZ distribution cabinets is available.
