Made under EN1254/4 & EN1254/1 Norms with brass under EN12164, EN12165 & EN1982 Norms.
GAS: Made under UNE 60719:2001 Norm.
Iron Nipples: Made under EN10255 Norm.

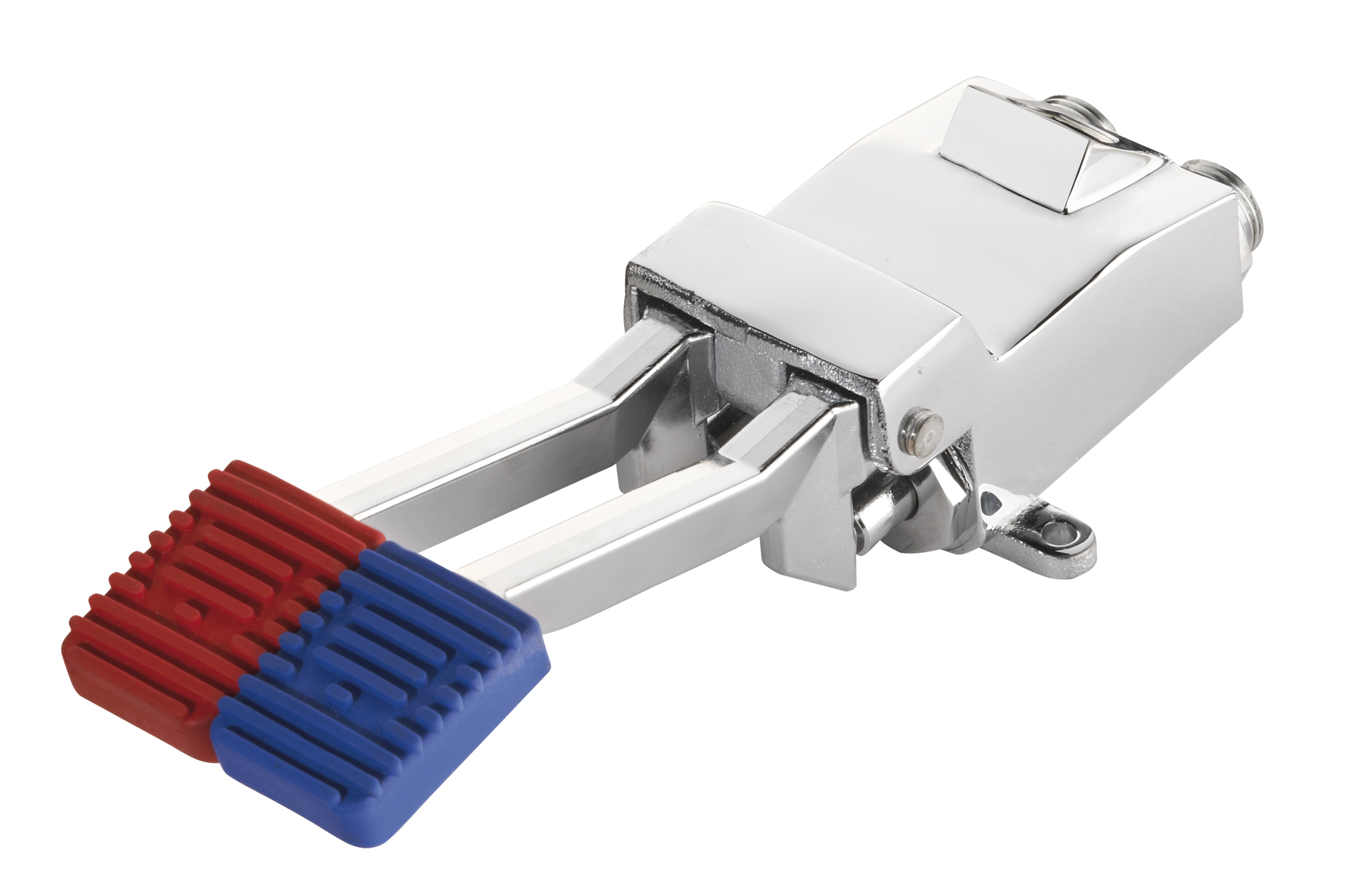

Faucets

Fabricación bajo Norma EN-816 con latón según Normas EN12164, EN12165 y EN1982.
Made under EN-816 Norm with brass under EN12164, EN12165 and EN1982 Norms.
Fabrication sous Norme EN-816 avec laiton selon Normes EN12164, EN12165 et EN1982

MultiGrup system comprisses: multilayer pipe, brass fittings, connecting tools to attach the pipe to the fitting and mounting accessories to work.
Scope
MultiGrup System is designed to use in plumbing installations for hot and cold water, heating radiators and floor heating.
In all cases the application must be made at the temperatures and pressures described for each type of application in the standard UNE-EN-150-21003.
System Components
Pipes
MultiGrup (PE-RT / AL / PE-RT) pipes are made up of five different layers:
· Inner layer of temperature-resistant polyethylene (PE-RT)
· Adhesive layer of high temperature
· Intermediate layer of aluminum butt welding
· Adhesive layer of high temperature
· External layer of temperature-resistant polyethylene (PE-RT)
Product certificate: AENOR 001/007142 and CSTBat 4440-278-1950-V2.
The main feature of the multilayer tube is the presence of the aluminium intermediate layer which gives the tube a remarkable resistance to pressure,
as well as conferring opacity to oxygen diffusion.
Some of the technical characteristics of the pipeline are:
Feature Value
Maximum Service Temperature 95ºC
Maximum Punctual Temperature 110ºC
Absolute roughness 0,007 mm
Linear Expansion Coefficient 0,025 mm/m
O2 permeability < 0,1 g/m3d

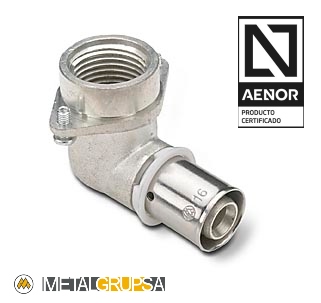

Accessories
Accessories are made of brass and CW614N standard CW617N, with latest technology of tinned coat.This coating gives excellent organoleptic and
aesthetic qualities to the piece. The dimensions follow the specifications of the standard EN1254 / 3 and are designed to ensure the perfect grip and
seal of tube.
The pressed Sleeve is made of stainless steel AISI 304, which ensures perfect corrosion resistance.
Accessories have their own O-rings in EPDM with high resistance to high temperatures.
