One Sensor – Four Signals

The importance of measuring and detecting air quality is significantly increasing. Various substances in the air are polluting the room climate and are affecting human health in the long run. To fight this influence mixed gas air quality sensors are used. Harmful and uncomfortable gases and vapours such as body odour, tobacco smoke or even the evaporation of materials in furniture, carpets or coat of paints are detected. Based on these measuring values air quality sensors enable a demand-responsive supply of fresh air or a contribution to an optimized energy consumption.

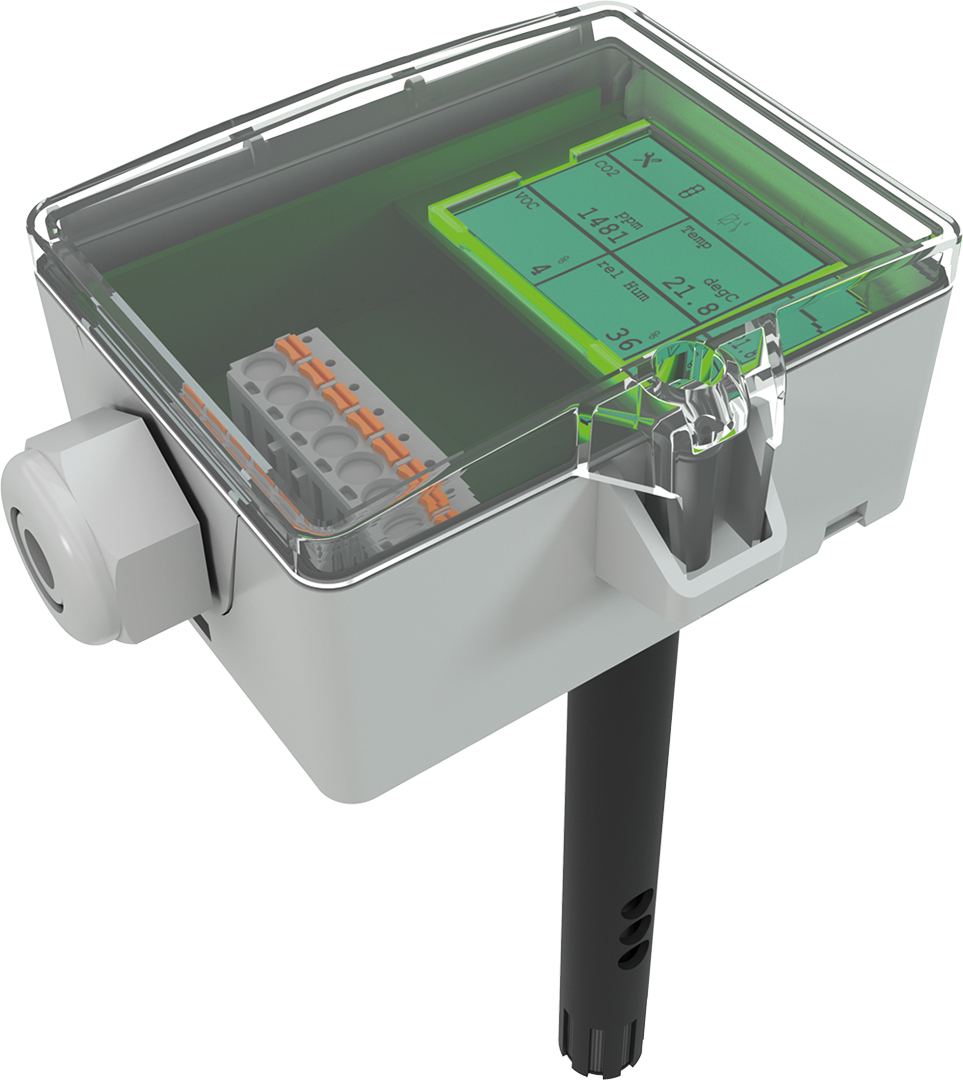

As one of the few manufactures in the market Thermokon offers a well thought-out solution combining four functions in one device. The duct air quality sensor type LK+ CO2+VOC allows the detection of CO2 and VOC as well as temperature and humidity. Thereby, the ALL-IN-ONE solution enables a full overview of all relevant measuring variables affecting the air quality. Thanks to this multi sensor the preconditions for an optimization of comfort and energy consumption are given.

High-graded design – hidden mounting

Thanks to the direct mounting in air ducts and air conditionings the multi sensor is not visible in the room at all and guarantees an inconspicuous appearance. The integrated hinged cover and the plug terminals enable an easy mounting – no tools are needed.

For a direct connection to a DDC or an automation system four analogue 0..10 V outputs are at option. For an operation without DDC or control technology a type with a mixed output is available offering the possibility to assess CO2 and VOC signals and to control the ventilation directly with the combined signal.

Mix ratio for selection:  30/70%, 50/50% and 70/30%.

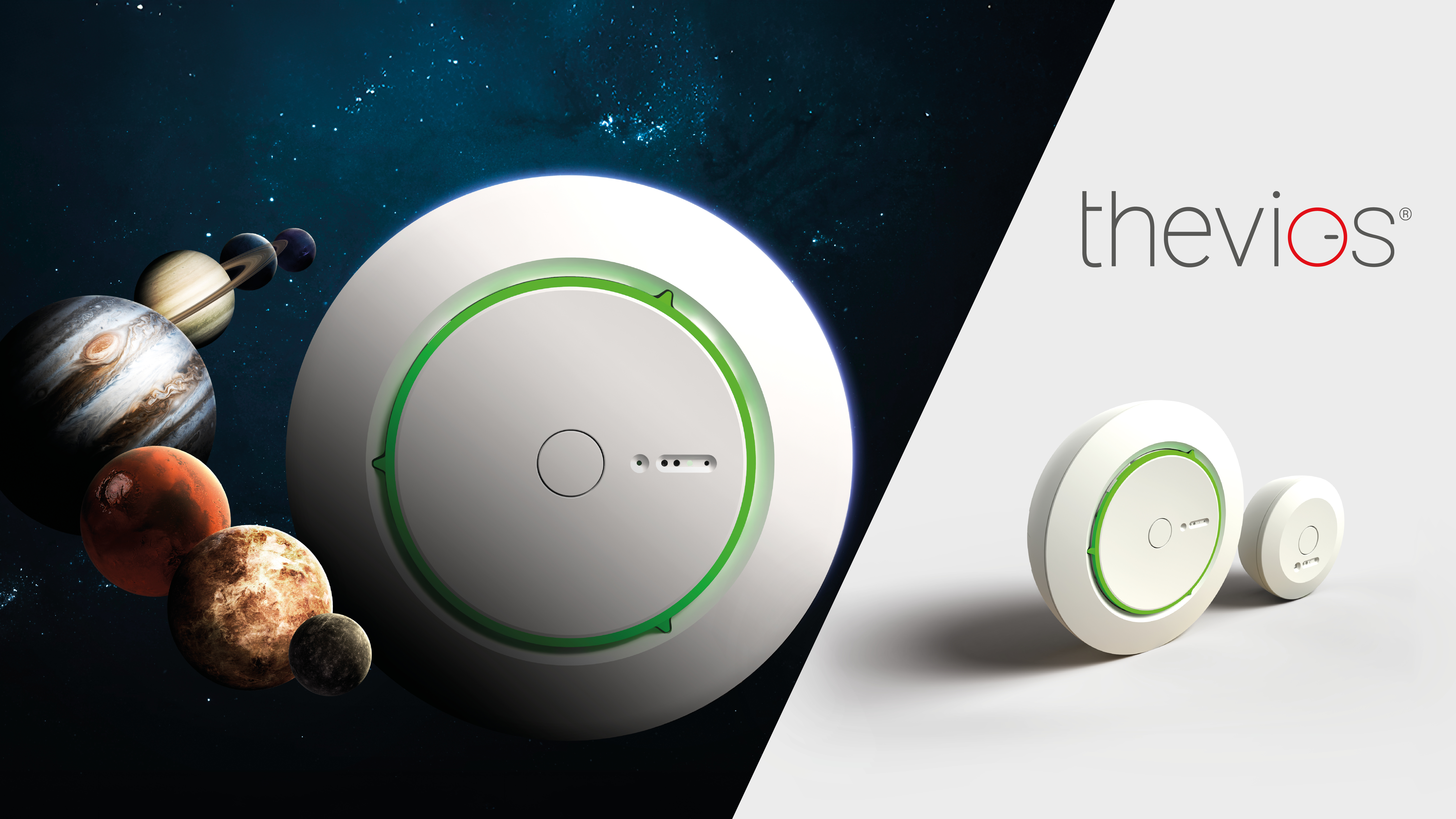

GALAXY OF POSSIBILITIES – MEASURE, CONNECT, EXPAND

What do space exploration and efficient room control have in common? Both require precise measurements and reliable, stable communication. The hubs and satellites of the new thevios ceiling sensor system deliver exactly that: precise sensing for capturing essential room parameters combined with maximum flexibility for integration into building management systems.

Advantages and Highlights

• Connected Intelligence
  The thevios hub and its satellites form a smart sensor
  network that requires only a single central interface to
  the building management system (BMS)


• High Scalability
  From simple sensors and multi-sensors to the
  creation of comprehensive sensor networks


• Enhanced Room Comfort
  Accurate monitoring of room climate and occupancy,
  including temperature, relative humidity, CO2, VOC,
  brightness and motion detection


• Compatibiliy
  Seamless integration into building automation
  systems via an IP interface


• Quick Installation
  Enabled by an intelligent enclosure design


• Measurement Indication
  Status display using a traffic light system


• Ceiling Installation
  Surface- and flush-mounted setups


• Design
  Timeless, subtile look

Accurate and reliable: Thanks to high quality components the differential pressure transmitter DPA+ can combine high accuracy (scroll down for more information) with high pressure safety (up to 400 kPa bursting pressure).

The hinged cover of the enclosure enables a fast access to all device installations. Another highlight of the DPA+ are the eight selectable measuring ranges.

In addition, DPA+ is available with display and/or RS485-Modbus output. Besides the measuring values, the set parameters are also indicated. Thus, the measuring values can be easily verified. The RS485 Modbus type enables the calculation of the volume flow.

Advantages and Highlights

• Eight selectable measuring ranges (MultiRange), each measuring range is calibrated separately
• High accuracy:
  DPA250+: ±1 Pa bei Messbereich < 250 Pa
  DPA2500+: ±5 Pa bei Messbereich < 500 Pa
  DPA7000+: ±10 Pa bei Messbereich < 2000 Pa
• Optional with automated zero point calibration
• High pressure safety (up to 400 kPa bursting pressure)
• Break- and schock proved hinged cover housing, protective class IP65
• Suitable for DIN-rail mounting
• Staggered pressure connectors to avoid a bending of the wires
• Optional display for reading of measuring values
• Available with RS485 Modbus output

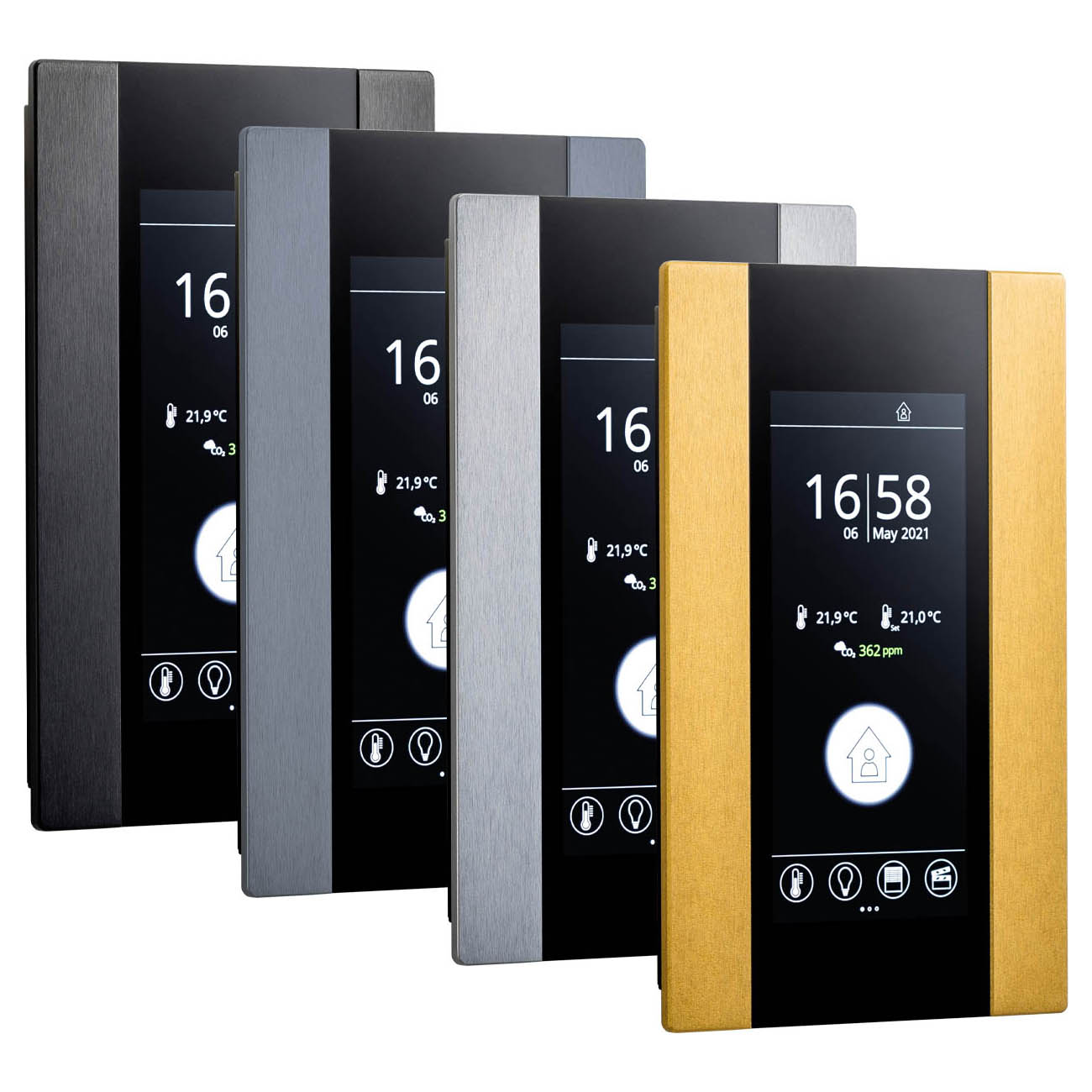

The high-grade materials and sophisticated design of the thanos EVO make it an outstanding room unit for high-end residential or commerical buildings. With its 4.8" touchscreen and up to 4 integrated sensors (temperature, relative humidity, CO2 and VOC), users can individually adjust multiple HVAC and lighting/blinds features. 2D room graphics make operations even more intuitive. External sensors and inputs enhance the multi-functionality of the thanos EVO.

 Advantages and Highlights

• Intuitive and comfortable user interface to control room climate, lighting and shading
• Individual scenes can be defined and called
• 2D room graphics to control lights and blinds
• Representation of individual logos (hotel, company logo, etc.)
• Integration of up to four sensors in one device (temperature, relative humidity, CO2 and VOC)
• ECO mode for an energy-efficient room control
• Clear visualization of values with trend logs and traffic light indication
• High-resolution 4,8” Touch screen with a real glass surface
• Digital input for external sensors/detectors (presence detector, window contact, etc.)
• Available in black and white
• Outputs:
  RS485 Modbus, BACnet, LON, KNX

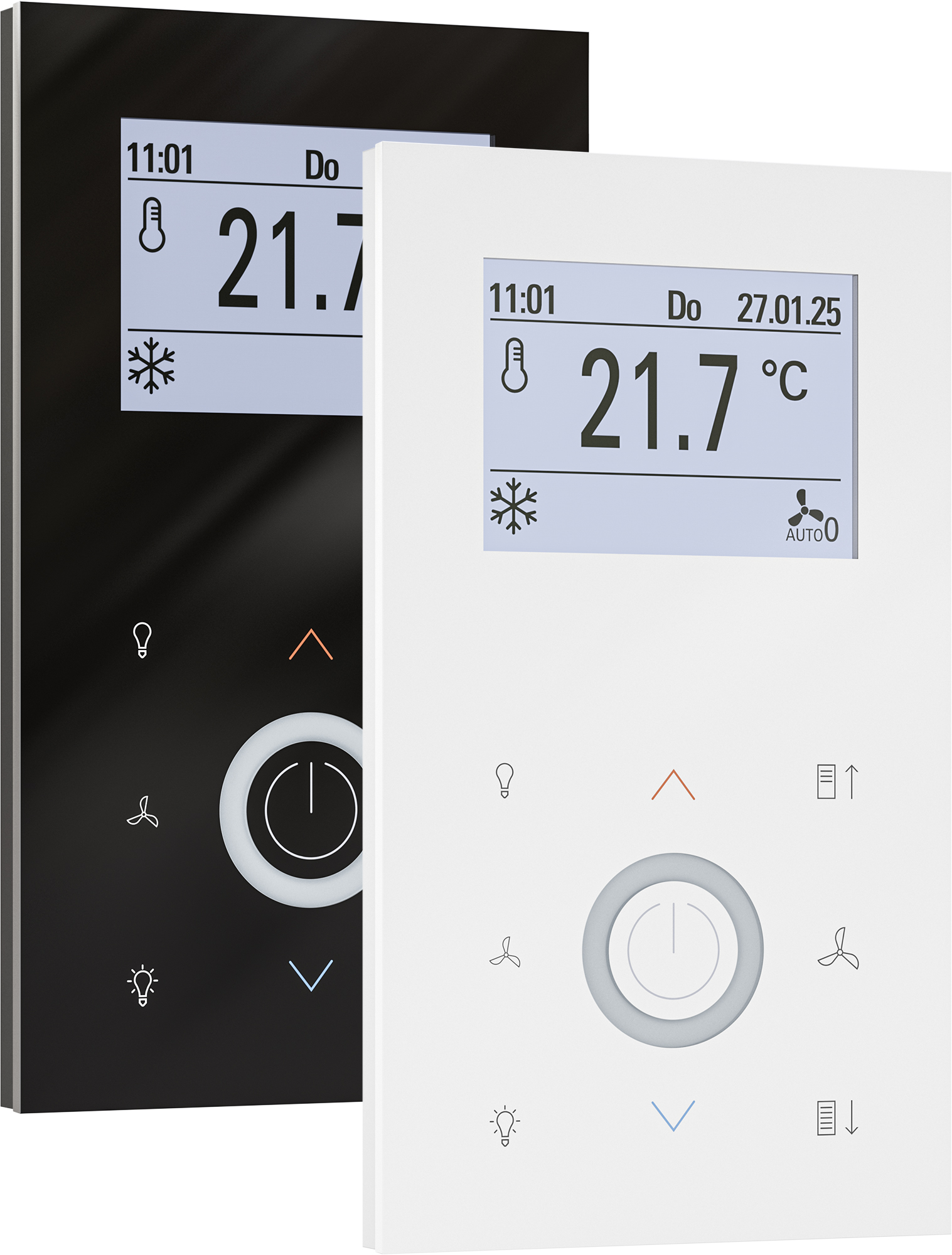

Appealing design, intuitive operation and flexible enough to adapt to most diverse requirements: The fancoil/room controller JOY by Thermokon makes up for an efficient and comfortable climate control in room applications. The visual experience is already convincing – a flat housing, precious touch interface made of scratch-proof glass, a power button framed in an exclusive stainless steel ring as well as the large and clear backlit display provide for a unique user experience. The LCD screen shows current HVAC values and settings e.g. temperature, fan stage as well as date and time for a time-controlled operation of functions.

The new JOY comes in three different versions: a heating/cooling model, a heating/fancoil model as well as a communicating model on Modbus. Due to the different models, flexible and individual building infrastuctures are covered in order to fulfill customer’s requirements and integrate into existing BMS.

At both ends, human interaction and integration into BMS, the JOY is destined to ease the configuration and control operations, making it a JOYful experience for users as well as integrators to work with. Further energy-efficiency functions are included already. One contributing factor is the ECO-function, which intelligently adapts HVAC functions (e.g. set temperature and fan stage) to current demands and thereby saves resources whilst allowing for individual user profiles still.

Also additional functions/sensors e.g. dew-point sensors, window contacts or key-card switches can be logically connected by using the digital inputs or the wireless EnOcean interface of the JOY thermostat. Change-over applications can be realized either with an external temperature sensor or digital relay input.

Advantages and Highlights

• Elegant flat design combined with premium materials and large LCD screen
• Flexibility and options through three different models
• Demand-controlled operation using individual user profiles
• Integration into BMS possible
• Integrated ECO-Function for an increased energy-efficiency
• Change-Over applications via external temperature sensor or relay input
• Optional integration of window contacts, dew-point sensors of key card switches
• Simple and quick configuration via touch buttons or BUS
• 7 days 4 periods programmable function: one week is divided into 7 days with four periods in each day, each temperature can be set separately to meet the user´s different room temperature need in different time periods
