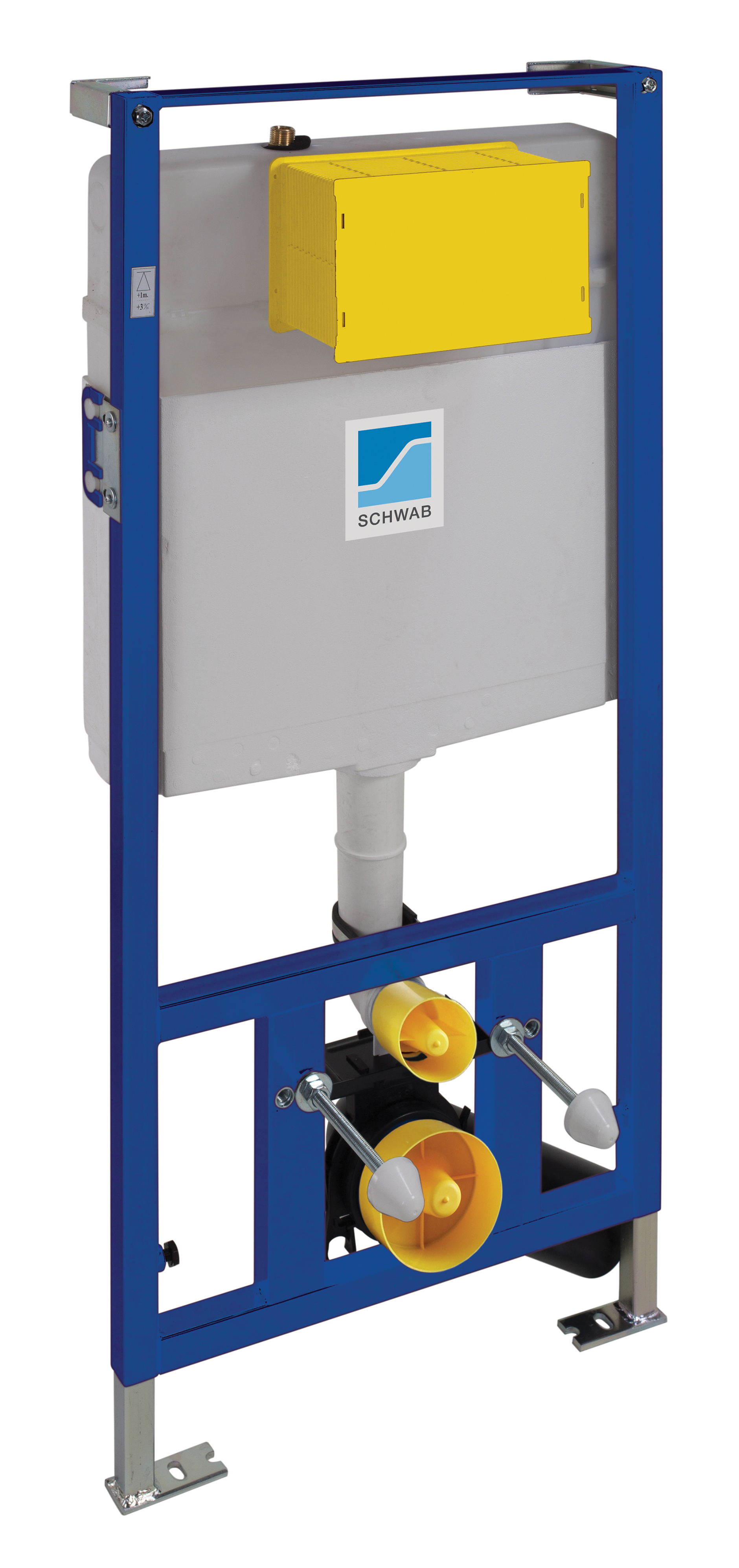

Installation method

• Installation in prefabricated walls, pre-wall installation in dry walls, universal installation into solid walls

Properties

• Supporting, blue powder coated WC element, square profile 40x30 mm with pre-assembled 199 UP concealed cistern
• Frontal flushing, for dual flushing (3/6 L)
• Flush volume adjustable (large flush 4.5-9 L, small flush 2.5-4.5 L)
• Pre-assembled wall brackets and adjustable feet (0-200 mm)
• Water connection - top center
• Fully insulated against condensation

Special features

• Quiet Hydraulic Fill valve (Noise class 1 ISO 3822)
• Depth adjustable drain elbow (+/-20 mm)

Product contains

• Concealed cistern equipped with pre-installed stop valve – top center
• Water connection 1/2”
• PE drain elbow Ø 90 mm with seal
• PE adapter Ø 90 / 110 mm with seal
• Complete installation and fixing material
• Flushing plate needs to be ordered separately

Wisa XS WC Variotronic

A small adjustment, makes a world of difference

The electronically height-adjustable VarioTronic WC solution easily enables adjustment of the height of a wall-hung WC to cater for varied user requirements.

The concealed, wall-mounted, height-adjustable flushing cistern is specially developed for hospitals, care homes, inclusive washrooms and care organisations, to maintain independence and comfort for the user, and convenience for the caregiver.

Offering optimum accessibility, the VarioTronic design ensures comfort for all users, making it easy to move from wheelchair to toilet. A standard-sized wall hung WC offers the perfect fit for washrooms and bathrooms.

The height of the toilet can be easily adjusted by 20 cm (-2cm/+18 cm) using a handy remote control. The minimum height of the wall-hung WC (to the top of the rim) is 38 cm and the maximum height is 58 cm.

Both sides, as well as the shelf are finished in stainless steel panels, which can be quickly and easily accessed for maintenance and servicing. The front of the product can be finished in white HPL or upgraded to safety glass which is available in black or white. Optional folding arm supports are also available in black or white.

Key Features:
• Slim, concealed toilet wall-mounting system which makes manoeuvring next to it in a wheelchair easy
• Contemporary, attractive design
• Sides and walls finished in high-quality stainless steel
• Easy servicing and maintenance accessed via the side panels
• Static load capacity up to 400 kg
• People up to 180 kg can be raised
• Arm supports can be completely folded up next to the frame for optimum transfer
• Arm supports move with the system
• Simple attachment / dismantling of arm supports
• The concealed wall-mounted system is easy to assemble
• Available with any XS control panel, mechanical, pneumatic or electronic

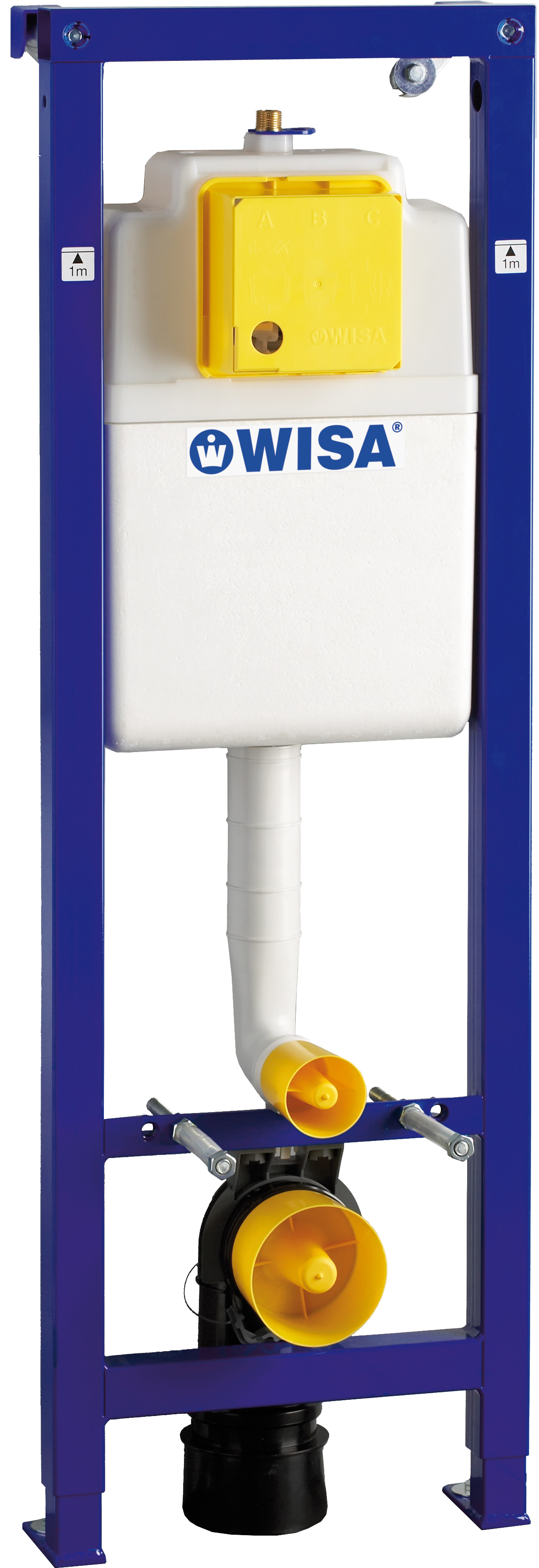

With WISA XS and XT, we offer a new generation of concealed cisterns; developed and produced by and for professionals. During the development WISA was assisted by an extensive panel of installers. The practical experience of those people learned that next to installation ease and trustworthiness, also aesthetics and efficiency are important. This knowledge, combined with the yearlong experience that we have in flushing technique, was the base of the development of WISA XS and XT. With WISA XS and XT we offer a complete series of concealed cisterns, for both wet and dry processing.

• Pre-installed WC cistern with support frame
• Blue powder coated frame
• Adjustable feet (20 cm)
• Dual flush 3/6 L or 6 L flush interruption depending on control panel
• Flush volume adjustable between 6 and 7.5 L
• Insulated against condensation
• Quiet hydraulic float valve
• Pre-installed stop valve
• Water connection 1/2”
• Pre-assembled wall fixation kit
• Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm
• Incl. insulation kit for pan to wall
• CE EN 14055 - CL1-6- NL I - VR I

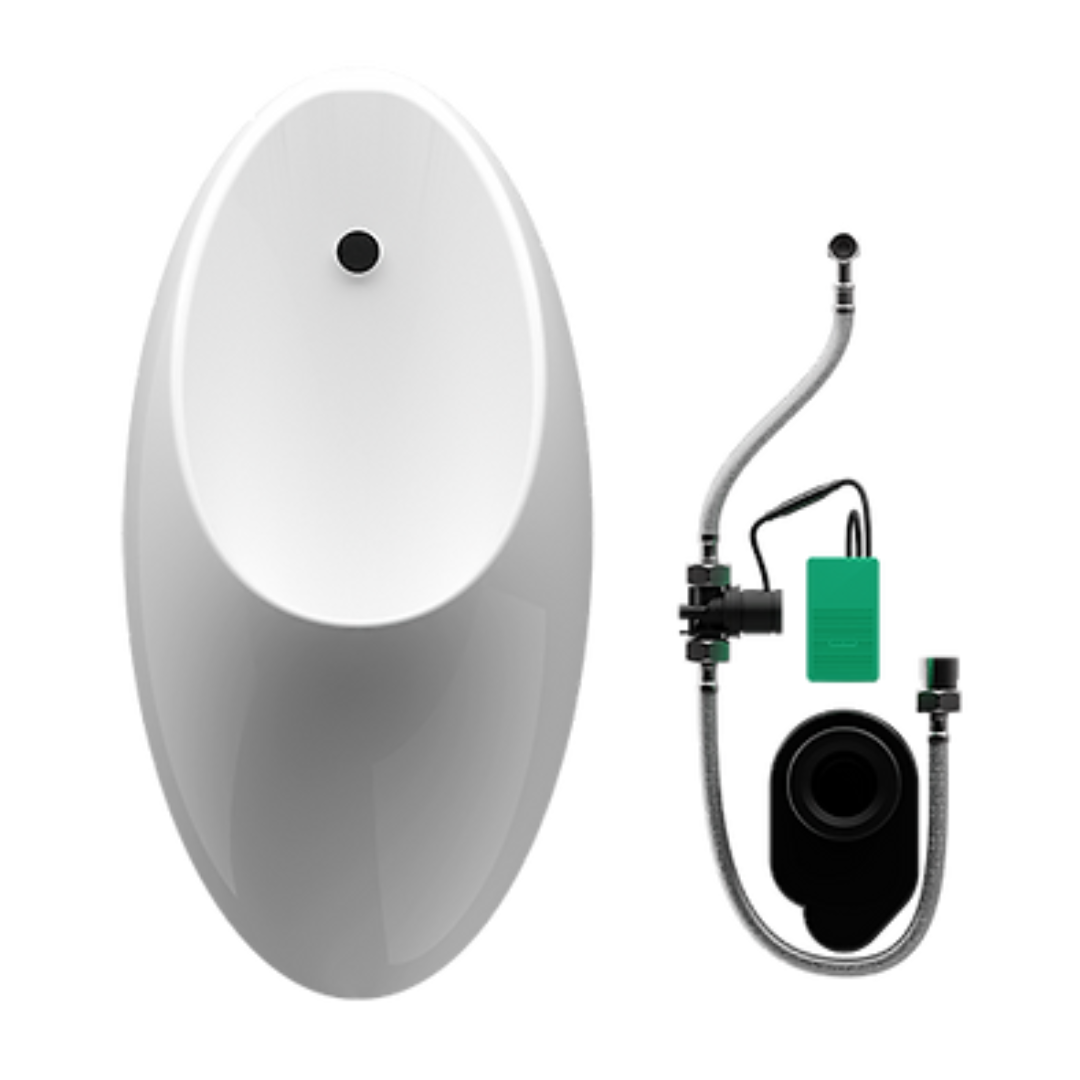

Fluidmaster U6 Urinal Pack

The premium U6 urinal pack is ideal for small- and large-scale washroom projects. Featuring the contemporary ‘Axis’ automatic flushing urinal with urine detection sensor and overflow prevention.

When aesthetics and durability are key, the IPEE U6 urinal pack is the ideal specification option. Combining a design-led ceramic unit with the effective IPEE flushing sensor technology to create a high quality and attractive urinal solution, this product is perfect for commercial projects requiring premium quality.

Adjustable flushing can be set using the Smart Key for maximum efficiency and a ‘Stadium Mode’ automatic flushing programme is available for user comfort and cleanliness in high use periods.

Market leading features of the U6 Urinal Pack include:

• Accurate use recognition by detection of urine and water level in the trap
• Automatic flushing after use
• No false flushing by detection of the use instead of the user
• Vandal proof flushing system, invisible to the user
• Contactless sensing for maintenance free use recognition
• Water seal monitoring and automatic water seal restoration
• Sensor on the back of urinal
• Automatic flushing stop in the case of a clogged drain or drainpipes
• Three flushing programs: eco, normal, full (0,8L; 1,5L; 3L)
• Hygiene flush if not flushed for 24 hours
• Automatic calibration

747EL Side Entry Fill Valve with 3/8" Heavy Duty Brass Shank

3/8″ Heavy Duty Brass Shank
