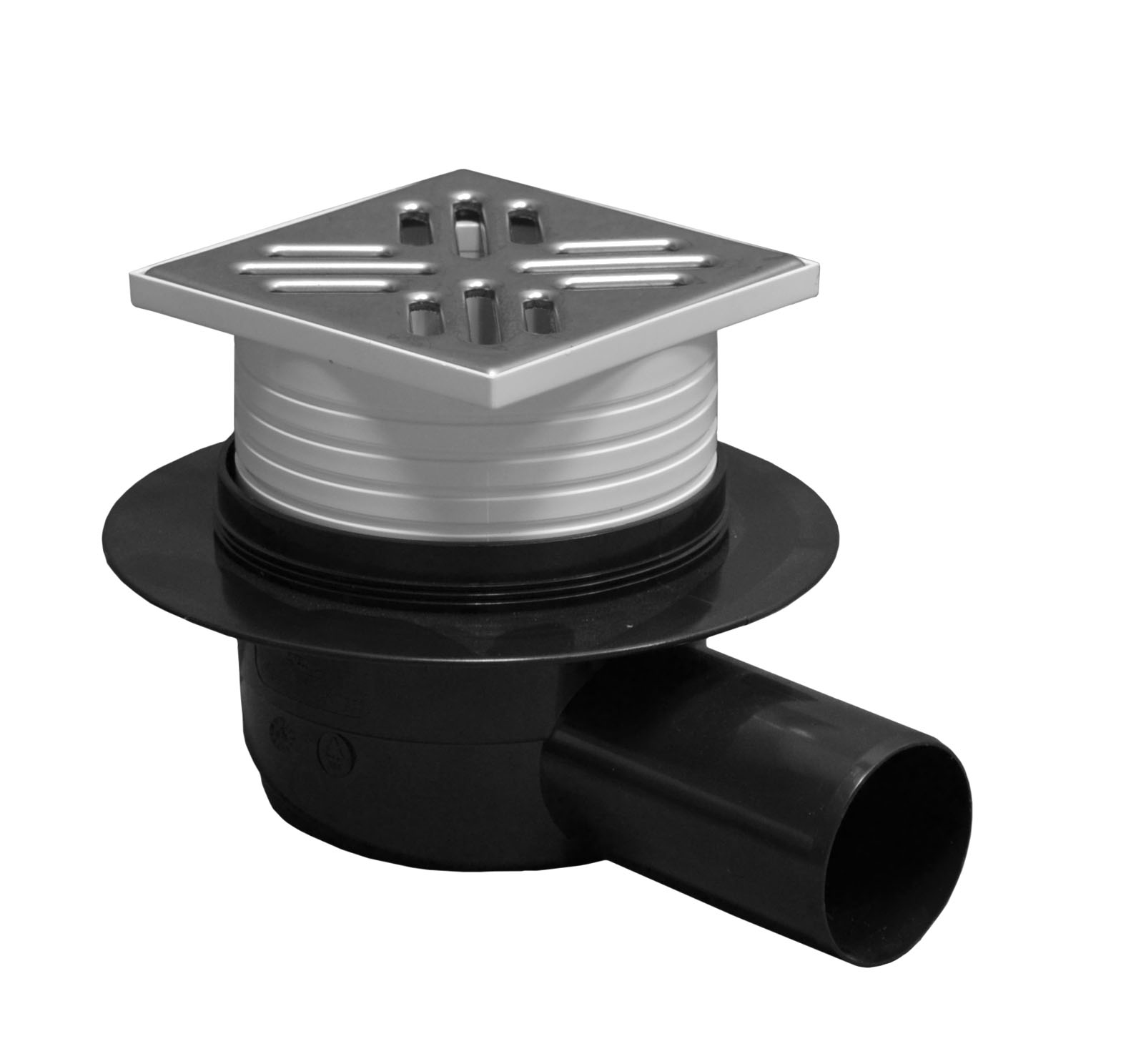

Floor drains

High performance floor drains for spot drainage and interior use.

Most common wet siphons are used where frequent usage associated with the regular water runoff into the floor drain (bathrooms) is anticipated, even for wheel chair access.

Dry valves are suitable for cottages and other less inhabited recreational facilities as well as technical rooms to prevent the sewer odours to enter any room. EN 1253, K3.

Advatages:

High flow rate 50,5 l/min

Height adjustable throat

Interchangable wet/dry valves

Insulation collar for connection to waterproofing of the building

Side connection to waste Ø50 mm

Mechanically cleanable up to the waste pipe

Material of body: ABS resistant to mechanical, chemical and thermal damage

Stainless steel grid 102×102×5 mm

Material of grid : stainless steel AISI 304, DIN 1.4301

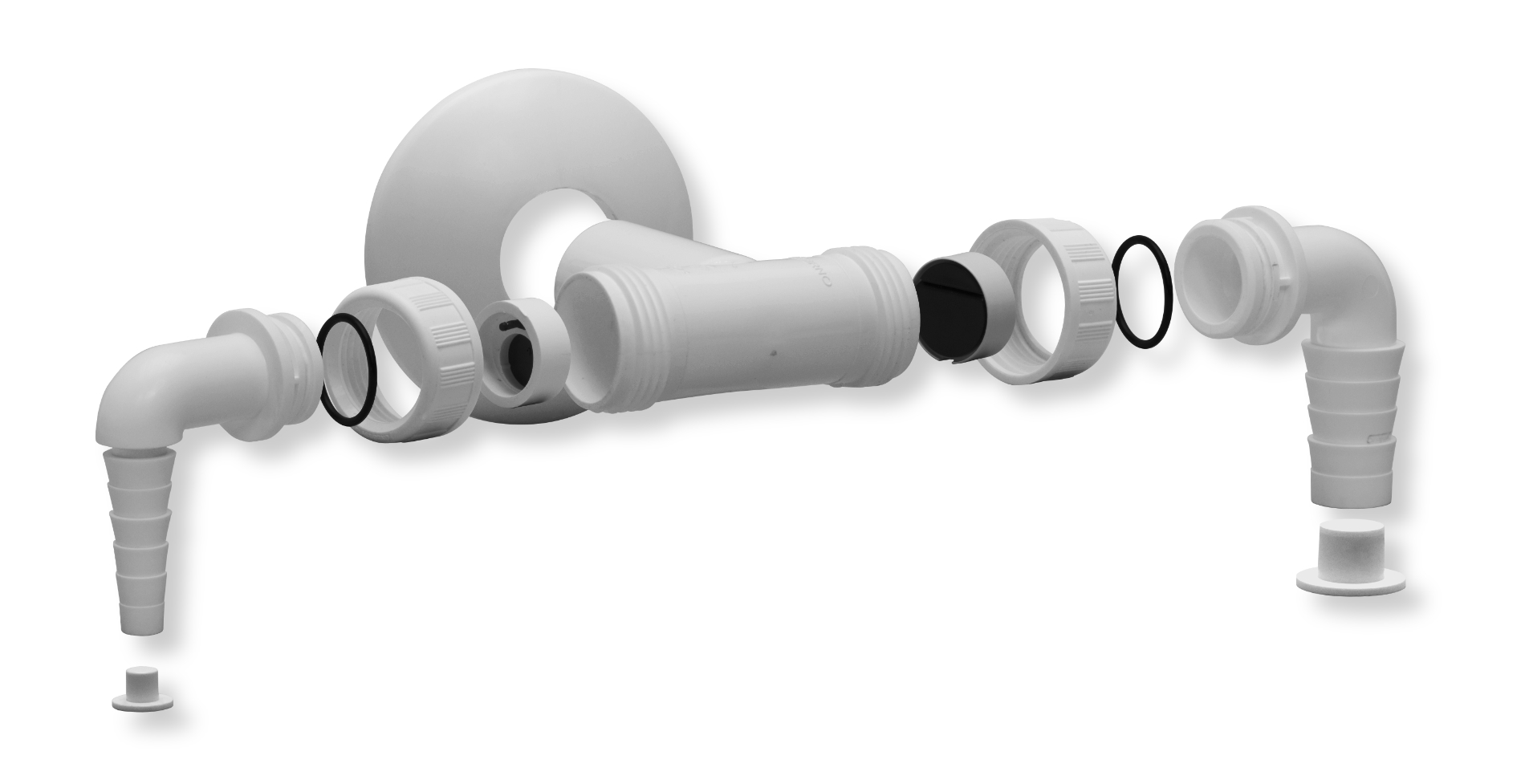

T- hose connector 32 with double bend

Special fittings and accessories to connect easily two appliances into one discharge pipe. Solution for wasching machine, dish washer, dryer, condensate or climatization. Connection directly to waste pipes or existing built-in W/M trap. Space saving solution. Equiped with back water flow to prevent from sewer odors and back flow.

Connection of up to two appliances | non return valves | spacesaving

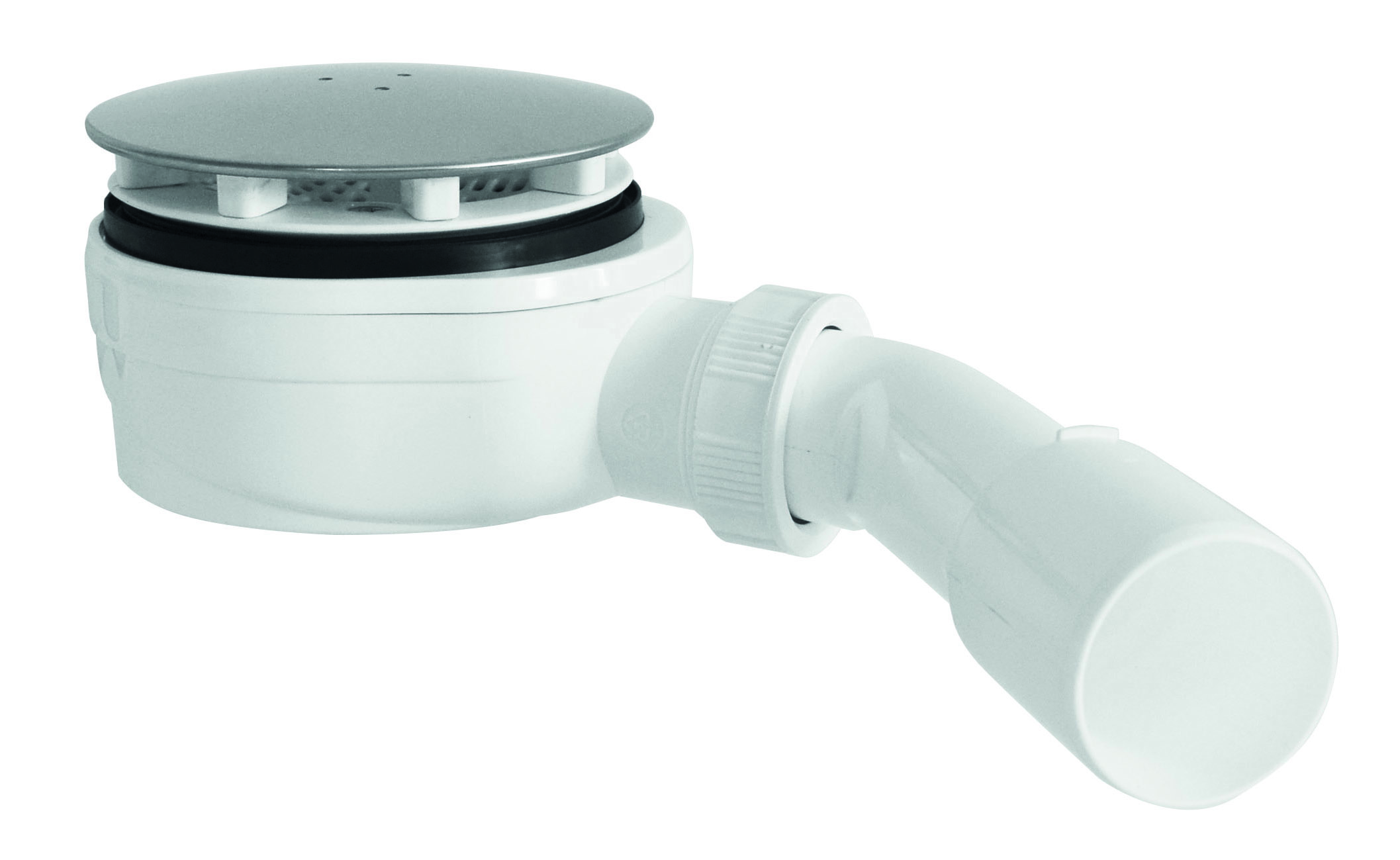

Shower tray siphon with inox cover

Easy cleaning | water flow 52 l/min | bend 45° DN 50 | inox cover | for diameter 50, 60, 90 | hair strainer

When installing a shower tray, you can build a zone with a shower in your bathroom without major interference with the floor. Thanks to the low construction height of the siphon and the swiveling elbow, you can more easily connect the trays to the existing drainage while maintaining the slope of the pipe. For less-used bathrooms, use a siphon with a dry odor trap, which will prevent the smell of waste from entering the room after the siphon has dried. This solution is suitable for cottages and other less inhabited recreational facilities. All siphons allow access for cleaning the waste pipe without the need to dismantle the shower tray. Our siphons are compatible with most shower trays on the market.

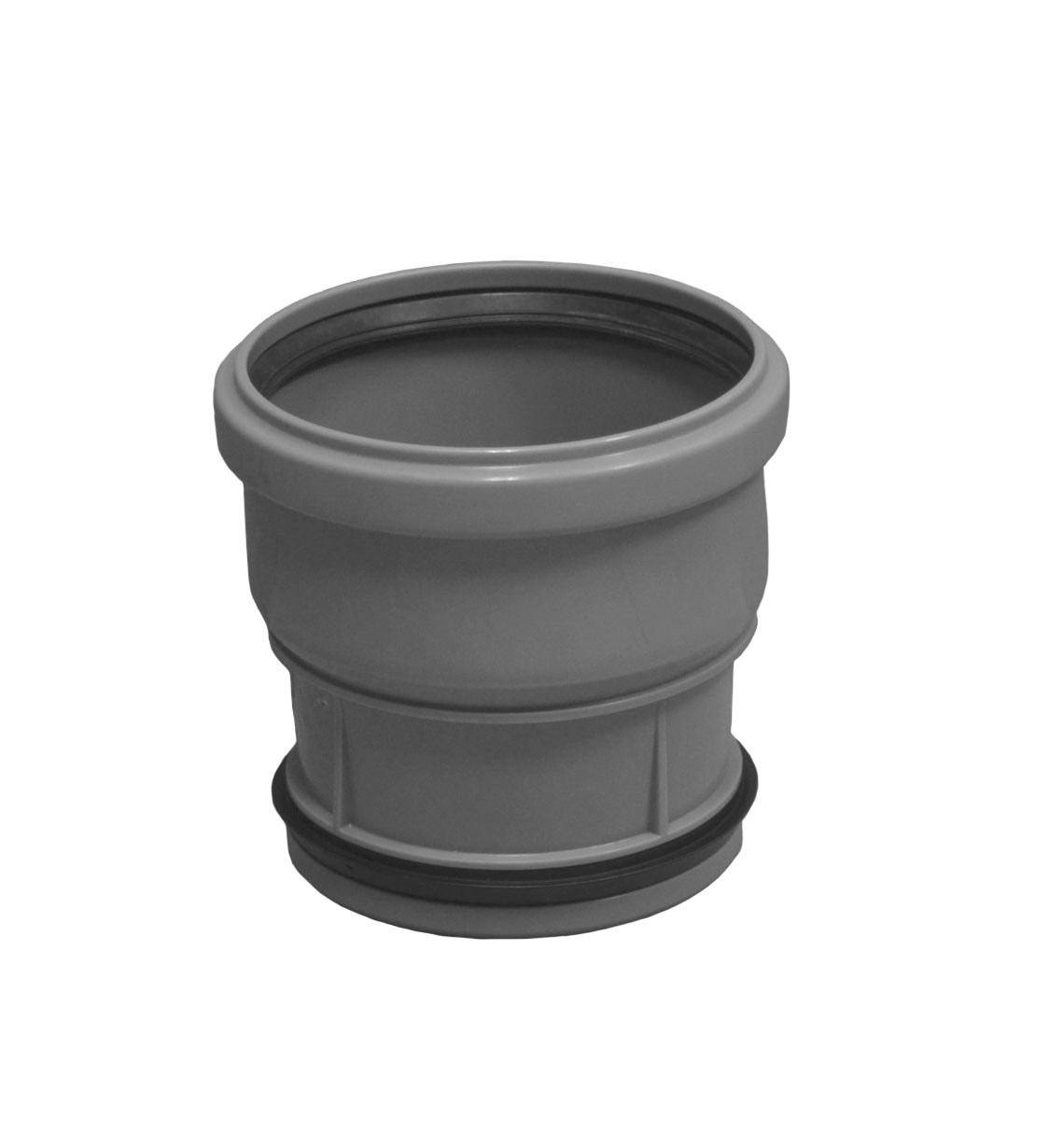

Wide range of internal reducers, spare sockets and other fittings can solve almost any situation on the biulding site, thus saving time and money. All made out of high quality polypropylene with EN cerfified lip seals.
