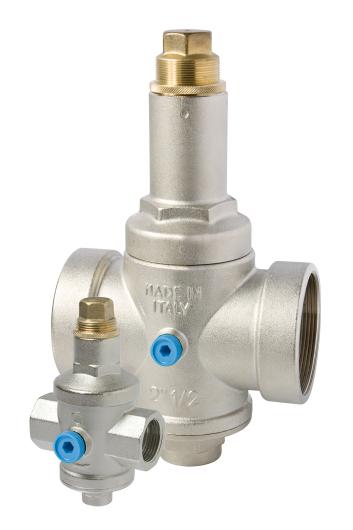

F.F. pressure reducing valve is particularly indicated in both civil aswell as industrial installations where medium-high flows are required, with the guarantee of the stainless steel tightness seat. The main feature is the piston operation with compensation chamber. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body there are two 1⁄4"G threads for the connection of a pressure gauge.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G - 2"1/2G - 3"G - 4"G

Technical informations
Maximum recommended working pressure 25 bar.

Regulation: F.F. pressure reducing valve is tested and calibrated to an exit pressure of 3 bar.

Outflow pressure adjustment field:
1/2"G - 3/4"G - 1"G 0,5-6 bar.
1"1/4G - 1"1/2G - 2"G 1-6 bar.
2"1/2G - 3"G - 4"G 1-7 bar.

Maximum using temperature 120°C.

Materials:
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
CB770S UNI EN1982 (2"1/2 - 3") -
C 72 DIN 17223-84 -
AISI 304 -
EPDM -
POLIMID A SG.
