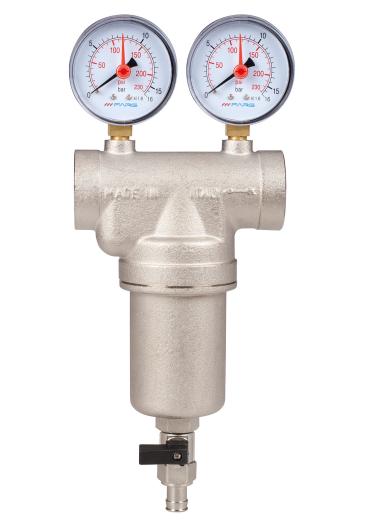

The self-cleaning filter is suitable for all plants, both civil and industrial ones, where the constant impurities in water could damage or block the present appliances. The water, we usually use, comes from waterworks or wells, contains a great number of particles which, according to their sizes, interact negatively with the installed accessories and compromise, therefore, their correct functioning. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body of the self-cleaning filter there are two 1⁄4"G threads for the connection of two pressure gauges.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 16 bar.

Filtering mesh:
400 micron (standard 1/2"-2").

Maximum using temperature 80°C.

Materials:
CB770S UNI EN 1982 -
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
AISI 304 -
EPDM -
POLIMID A SG -
PVC -
Nylon -
P.T.F.E.
