F.A.R.G. S.r.l

Art. 600 - F.F. self-cleaning filter with filtering cartridge 400 micron.

The self-cleaning filter is suitable for all plants, both civil and industrial ones, where the constant impurities in water could damage or block the present appliances. The water, we usually use, comes from waterworks or wells, contains a great number of particles which, according to their sizes, interact negatively with the installed accessories and compromise, therefore, their correct functioning. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body of the self-cleaning filter there are two 1⁄4"G threads for the connection of two pressure gauges.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 16 bar.

Filtering mesh:
400 micron (standard 1/2"-2").

Maximum using temperature 80°C.

Materials:
CB770S UNI EN 1982 -
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
AISI 304 -
EPDM -
POLIMID A SG -
PVC -
Nylon -
P.T.F.E.

Art. 523 - Adjustable noiseless float valve in pressed brass

Adjustable noiseless float valve in pressed brass with inlet pipe, with flat rod. Main feature of this model is the closing through membrane, that guarantees a silent working. On the body and on the external parts in brass a superficial treatment of nickel-plate is performed. On all the sizes there is the seat build in stainless steel, that it guarantees a long life of the float valve. The rod can be regulated to obtain the closing of the float valve to a requested height. The tap is complete of a plastic inlet pipe that reduces noise provoked by the fall of the water in the tank.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 8 bar.

Maximum recommended working temperature 80°C.

Materials:

CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
CW508L UNI EN 12166 -
NBR -
Novadur P2H-AT -
AISI 304 -
AISI 430 -
PVC.

Art. 525 - GLOBUS quick-fit BALL-operated noisless float valve.

GLOBUS quick-fit BAll-operated noisless float valve in hot-pressed brass, complete with inlet pipe and flat rod.
Patented ball operation, ensuring unique noiselessness and total invulnerability to vibrations.
The valve body and the inner brass ball has undergone T.E.A.+ surface treatment.
The chrome-plated ball and PTFE seats ensure maximum seal, while a filter at the valve inlet ensures that no damage is caused by impurities.
The new quick-fit connection system simplifies installation and maintenance.
The valve comes with plastic inlet hose, reducing the noise caused by the fall of water into the tank.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G

Technical informations

Maximum recommended working pressure 12 bar.

Maximum recommended working temperature 80°C.

Materials:
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
EPDM -
PTFE -
AISI 304 -
AISI 430 –
PVC

Art. 504 - F.F. pressure reducing valve with inox seat.

F.F. pressure reducing valve is particularly indicated in both civil aswell as industrial installations where medium-high flows are required, with the guarantee of the stainless steel tightness seat. The main feature is the piston operation with compensation chamber. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body there are two 1⁄4"G threads for the connection of a pressure gauge.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G - 2"1/2G - 3"G - 4"G

Technical informations
Maximum recommended working pressure 25 bar.

Regulation: F.F. pressure reducing valve is tested and calibrated to an exit pressure of 3 bar.

Outflow pressure adjustment field:
1/2"G - 3/4"G - 1"G 0,5-6 bar.
1"1/4G - 1"1/2G - 2"G 1-6 bar.
2"1/2G - 3"G - 4"G 1-7 bar.

Maximum using temperature 120°C.

Materials:
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
CB770S UNI EN1982 (2"1/2 - 3") -
C 72 DIN 17223-84 -
AISI 304 -
EPDM -
POLIMID A SG.

Art. 600 - F.F. self-cleaning filter with filtering cartridge 400 micron.

The self-cleaning filter is suitable for all plants, both civil and industrial ones, where the constant impurities in water could damage or block the present appliances. The water, we usually use, comes from waterworks or wells, contains a great number of particles which, according to their sizes, interact negatively with the installed accessories and compromise, therefore, their correct functioning. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body of the self-cleaning filter there are two 1⁄4"G threads for the connection of two pressure gauges.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 16 bar.

Filtering mesh:
400 micron (standard 1/2"-2").

Maximum using temperature 80°C.

Materials:
CB770S UNI EN 1982 -
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
AISI 304 -
EPDM -
POLIMID A SG -
PVC -
Nylon -
P.T.F.E.

Art. 523 - Adjustable noiseless float valve in pressed brass

Adjustable noiseless float valve in pressed brass with inlet pipe, with flat rod. Main feature of this model is the closing through membrane, that guarantees a silent working. On the body and on the external parts in brass a superficial treatment of nickel-plate is performed. On all the sizes there is the seat build in stainless steel, that it guarantees a long life of the float valve. The rod can be regulated to obtain the closing of the float valve to a requested height. The tap is complete of a plastic inlet pipe that reduces noise provoked by the fall of the water in the tank.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 8 bar.

Maximum recommended working temperature 80°C.

Materials:

CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
CW508L UNI EN 12166 -
NBR -
Novadur P2H-AT -
AISI 304 -
AISI 430 -
PVC.

Art. 525 - GLOBUS quick-fit BALL-operated noisless float valve.

GLOBUS quick-fit BAll-operated noisless float valve in hot-pressed brass, complete with inlet pipe and flat rod.
Patented ball operation, ensuring unique noiselessness and total invulnerability to vibrations.
The valve body and the inner brass ball has undergone T.E.A.+ surface treatment.
The chrome-plated ball and PTFE seats ensure maximum seal, while a filter at the valve inlet ensures that no damage is caused by impurities.
The new quick-fit connection system simplifies installation and maintenance.
The valve comes with plastic inlet hose, reducing the noise caused by the fall of water into the tank.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G

Technical informations

Maximum recommended working pressure 12 bar.

Maximum recommended working temperature 80°C.

Materials:
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
EPDM -
PTFE -
AISI 304 -
AISI 430 –
PVC

Art. 504 - F.F. pressure reducing valve with inox seat.

F.F. pressure reducing valve is particularly indicated in both civil aswell as industrial installations where medium-high flows are required, with the guarantee of the stainless steel tightness seat. The main feature is the piston operation with compensation chamber. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body there are two 1⁄4"G threads for the connection of a pressure gauge.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G - 2"1/2G - 3"G - 4"G

Technical informations
Maximum recommended working pressure 25 bar.

Regulation: F.F. pressure reducing valve is tested and calibrated to an exit pressure of 3 bar.

Outflow pressure adjustment field:
1/2"G - 3/4"G - 1"G 0,5-6 bar.
1"1/4G - 1"1/2G - 2"G 1-6 bar.
2"1/2G - 3"G - 4"G 1-7 bar.

Maximum using temperature 120°C.

Materials:
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
CB770S UNI EN1982 (2"1/2 - 3") -
C 72 DIN 17223-84 -
AISI 304 -
EPDM -
POLIMID A SG.

Art. 600 - F.F. self-cleaning filter with filtering cartridge 400 micron.

The self-cleaning filter is suitable for all plants, both civil and industrial ones, where the constant impurities in water could damage or block the present appliances. The water, we usually use, comes from waterworks or wells, contains a great number of particles which, according to their sizes, interact negatively with the installed accessories and compromise, therefore, their correct functioning. The joints for the connection to the hydraulic plant are internal threaded in compliance with the ISO 228/1 standard. On the body of the self-cleaning filter there are two 1⁄4"G threads for the connection of two pressure gauges.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 16 bar.

Filtering mesh:
400 micron (standard 1/2"-2").

Maximum using temperature 80°C.

Materials:
CB770S UNI EN 1982 -
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
AISI 304 -
EPDM -
POLIMID A SG -
PVC -
Nylon -
P.T.F.E.

Art. 523 - Adjustable noiseless float valve in pressed brass

Adjustable noiseless float valve in pressed brass with inlet pipe, with flat rod. Main feature of this model is the closing through membrane, that guarantees a silent working. On the body and on the external parts in brass a superficial treatment of nickel-plate is performed. On all the sizes there is the seat build in stainless steel, that it guarantees a long life of the float valve. The rod can be regulated to obtain the closing of the float valve to a requested height. The tap is complete of a plastic inlet pipe that reduces noise provoked by the fall of the water in the tank.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G - 1”1/2 G - 2”G

Technical informations

Maximum recommended working pressure 8 bar.

Maximum recommended working temperature 80°C.

Materials:

CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
CW508L UNI EN 12166 -
NBR -
Novadur P2H-AT -
AISI 304 -
AISI 430 -
PVC.

Art. 525 - GLOBUS quick-fit BALL-operated noisless float valve.

GLOBUS quick-fit BAll-operated noisless float valve in hot-pressed brass, complete with inlet pipe and flat rod.
Patented ball operation, ensuring unique noiselessness and total invulnerability to vibrations.
The valve body and the inner brass ball has undergone T.E.A.+ surface treatment.
The chrome-plated ball and PTFE seats ensure maximum seal, while a filter at the valve inlet ensures that no damage is caused by impurities.
The new quick-fit connection system simplifies installation and maintenance.
The valve comes with plastic inlet hose, reducing the noise caused by the fall of water into the tank.

Available sizes: 1/2”G - 3/4”G - 1”G - 1”1/4 G

Technical informations

Maximum recommended working pressure 12 bar.

Maximum recommended working temperature 80°C.

Materials:
CW617N UNI EN 12165 -
CW614N UNI EN 12164 -
EPDM -
PTFE -
AISI 304 -
AISI 430 –
PVC

Search

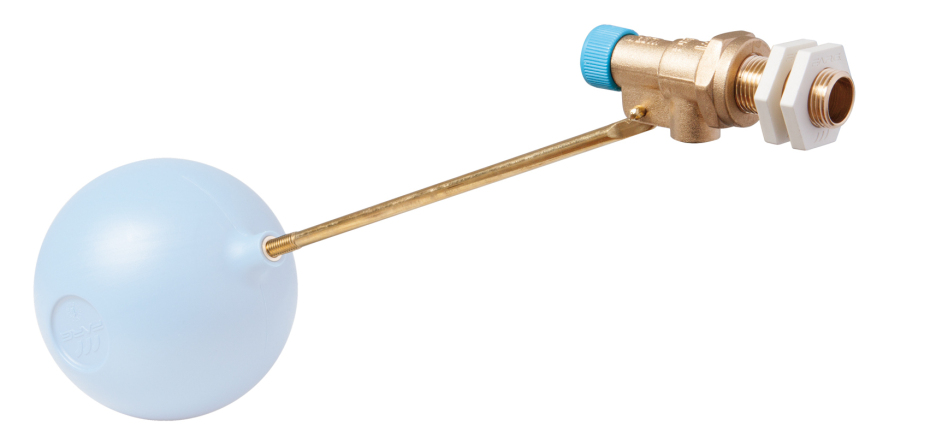

Art. 527 - Float valve in pressed brass, BS type.
