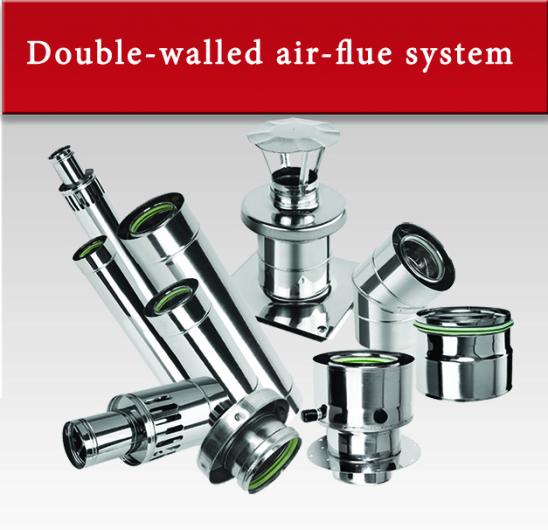

KOMIN-MAX TURBO II chimney systems for boilers

The KOMIN-MAX TURBO II double-wall chimney systems are designed for flue gas discharge from boilers and stoves with a closed combustion chamber and condensing boilers, while supplying combustion air via a concentric duct.
The product is manufactured in a standard diameter range of DN 50/80mm to DN 200/350mm. All components of the system exposed to the flue gas shall be made with 0.4 mm or 0.6 mm thick 1.4404, 1.4521 or 1.4301 stainless-steel sheet. All non-exposed components of the system can be made from 1.4301 or 1.4509 steel sheet.

This chimney system operates at positive pressure. All flue gas discharge duct connections are sealed with silicone gaskets designed to maintain a sufficient operating overpressure and prevent condensate leaks. It is critical that the chimney system assembly allows free drainage of condensate without pooling anywhere along the flue, e.g. on the gaskets.

The air-tight combustion chamber allows installing a boiler in virtually every room without any safety hazards to the people indoor. The double-wall (concentric) system also supplies combustion air to the boiler via the same chimney kit.

KOMIN-MAX TURBO I

The KOMIN-MAX TURBO I single-wall chimney systems are designed for flue gas discharge from boilers and stoves with a closed combustion chamber and condensing boilers.
The product is manufactured in a standard diameter range of DN 50 mm to DN 350 mm. All components of the system exposed to the flue gas shall be made with 0.4 mm or 0.6 mm thick 1.4404, 1.4521 or 1.4301 stainless-steel sheets. All non-exposed components of the system can be made from 1.4301 or 1.4509 steel sheets.
This chimney system operates at positive pressure. All connections are sealed with silicone gaskets designed to maintain a sufficient operating overpressure and prevent condensate leaks. It is critical that the chimney system assembly allows free drainage of condensation without pooling anywhere along the flue, e.g. on the gaskets.
The air-tight combustion chamber allows the installation of a boiler in virtually any room without any safety hazards to the people inside.

SYSTEM PROPERTIES TURBO I single-wall system NG X Furnace oil X Wood   Pellets   Coal   Corrosion resistance Vm Max. operating temperature 200 Material (flue gas pipe) 1,4404; 1.4521 Material (air supply pipe) 1.4301; 1.4509 Core material thickness 0,4-0,6 mm Insulation   Insulation thickness   Flue operation type Overpressure Air supply operation type vacuum Soot fire resistance O Approvals / certificates CE 1450-CRP-0034 Warranty 5 years SYSTEM PROPERTIES TURBO II double-wall system NG X Furnace oil X Wood   Pellets   Coal   Corrosion resistance Vm Max. operating temperature 200 Material (flue gas pipe) 1,4404; 1.4521 Material (air supply pipe) 1.4301; 1.4509 Core material thickness 0,4-0,6 mm Insulation   Insulation thickness   Flue operation type Overpressure Air supply operation type vacuum Soot fire resistance O Approvals / certificates CE 1450-CRP-0034 Warranty 5 years
